  •   GODIAG GD101 J2534 Passthru

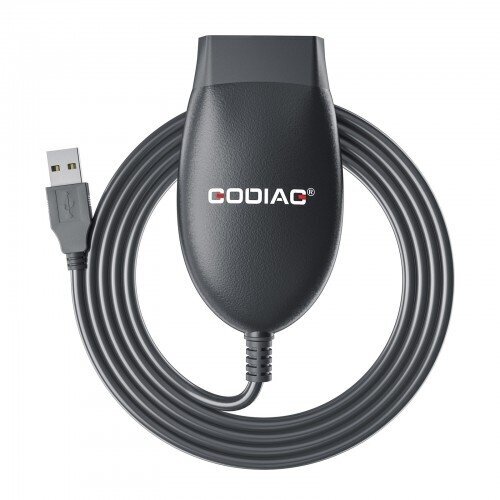

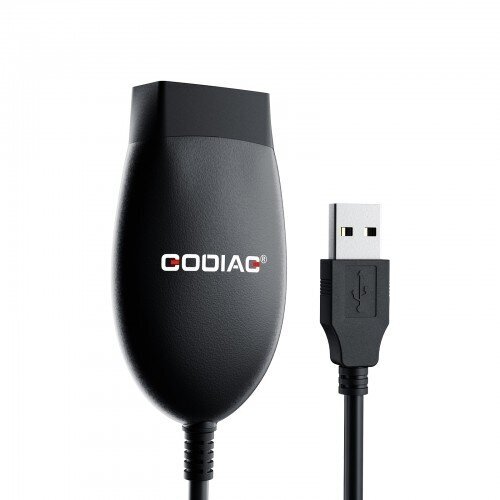

      GODIAG GD101 J2534 Passthru 1

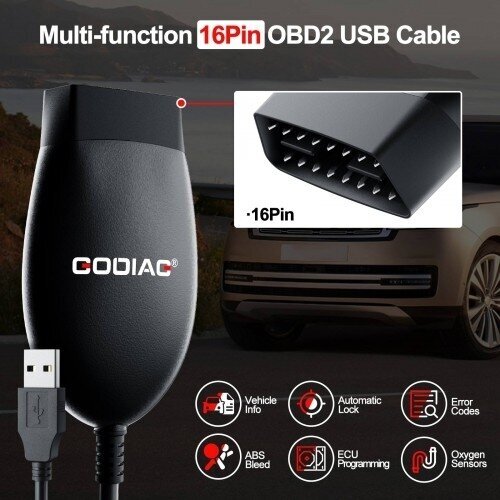

      GODIAG GD101 J2534 Passthru 2

    GODIAG GD101 J2534 Passthru

    Inquire about this item
    45 €
    Aproximate delivery time: 4 - 7 w. d.

    IN STOCK

    Ready for dispatch within 24 hours

    Manufacturer
    GODIAG
    Warranty for individuals
    24 months

  • Updates

    Supports firmware updates from the manufacturer.

    Technical Specifications:

    • ISO11898-2: High-speed CAN (OBDII PIN 6 and PIN 14, speed up to 1000Kbps).
    • ISO9141 and ISO14230: K-line (OBDII PIN 7 and PIN 15).
    • J1850 PWM: (OBDII PIN 2 and PIN 10).
    • J1850 VPW: (OBDII PIN 2).
    • Programming voltage: (OBDII PIN 12 or PIN 13, up to 20V).
    • Ground connection: (OBDII PIN 9, connected to OBDII PIN 5).
    • Dimensions (IPA): 95mm x 55mm x 23mm.
    • Operating temperature: -20℃ - 45℃ (-4℉ - 113℉).
    • Vehicle voltage requirements: 8-18V DC.
    • Vehicle connection: Molded DLC3 (OBDII-16).
    • PC connection: USB 2.0.

    Package Contents:

    • 1 PCS GD101
    • 1 PCS User Manual / Drivers (English)

    Protocols:

    • ISO15765 (Standard/Extended frame).
    • ISO9141.
    • ISO14230.
    • J1850 PWM (Support IFR and 2X speed mode).
    • J1850 VPW (Support 4X speed mode).
    • Programming voltage.
    • Short to ground.
    • ELM327 with command set version 1.3a.
    • Does not support MS-CAN (FORD / MAZDA).

    Supported Software:

    • Supports almost all J2534-compatible software (HDS, TIS, ODIS, JLR SDD, PCMFlash, etc.).
    • Supports almost all ELM327 software (ELMConfig, ScanMaster, etc.).
    • Supports ECU reprogramming in J2534 mode with programming voltage.
    • Provides free software for diagnosing J1979-compatible vehicles.

    Important information about function availability

    Attention – not all functions mentioned in the product description may be available for your car, truck, or motorcycle.
    The scope of diagnostic and other functions depends on the vehicle manufacturer, model, year of manufacture, configuration, control unit versions, and many other technical factors.

    We recommend verifying compatibility with your specific vehicle before purchase.
