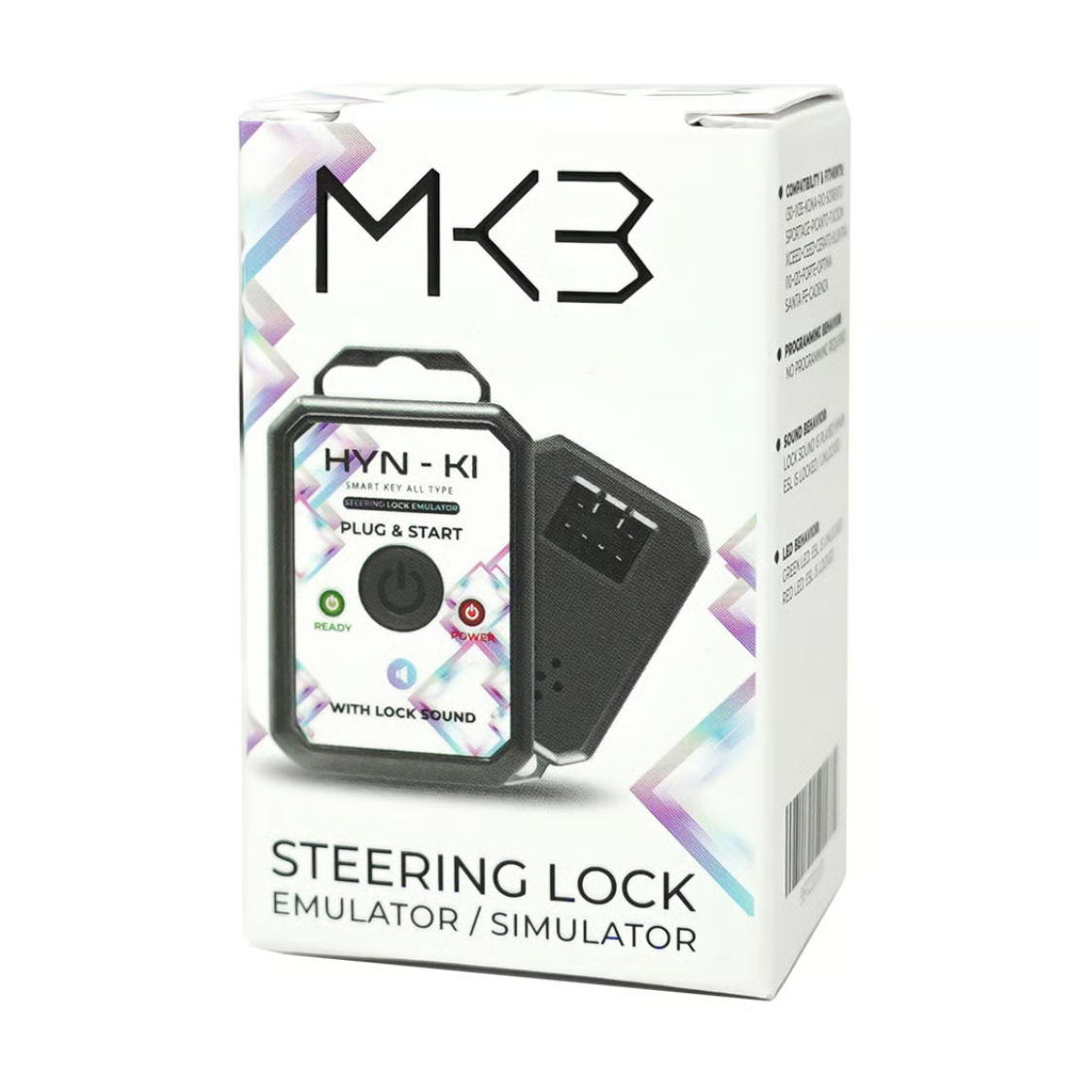

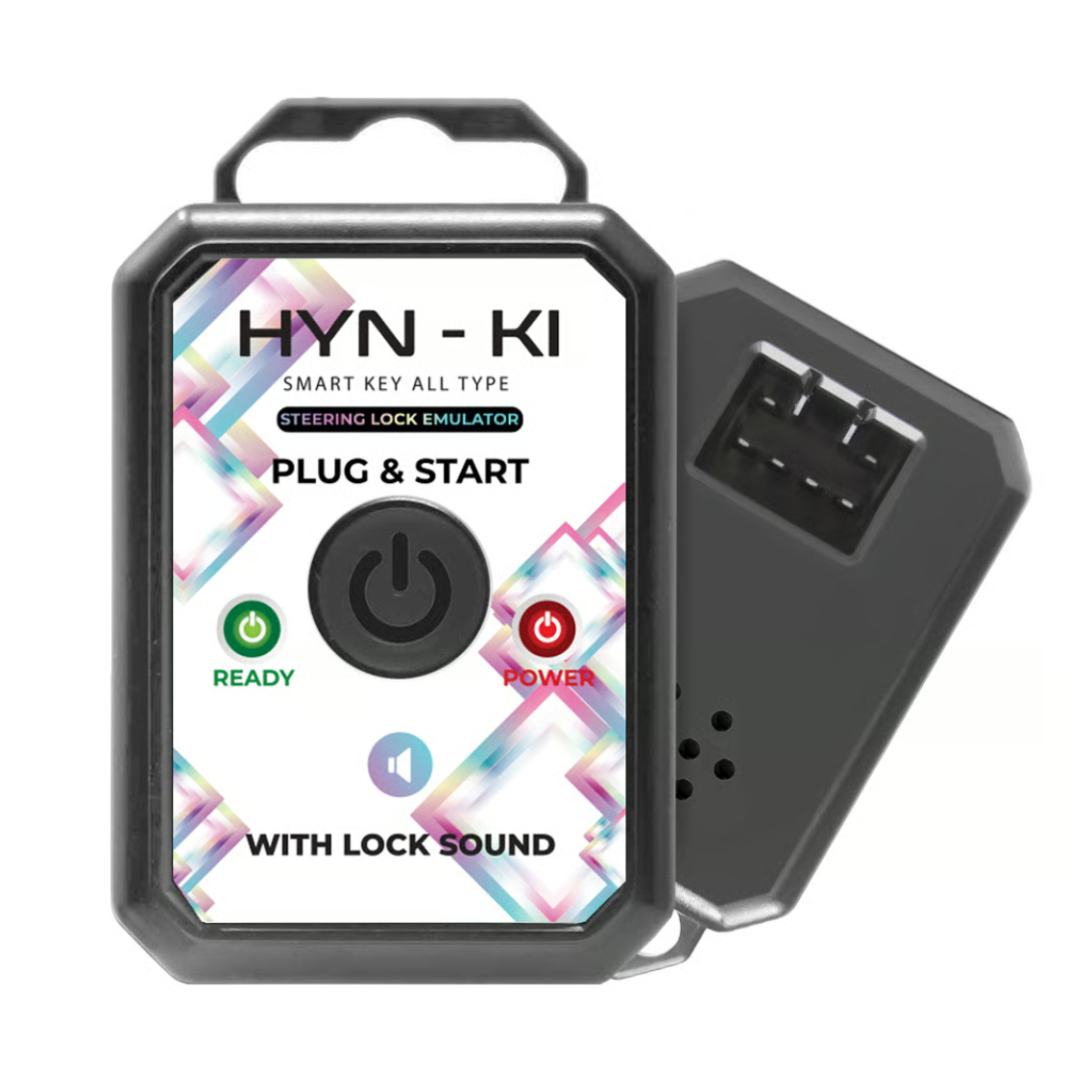

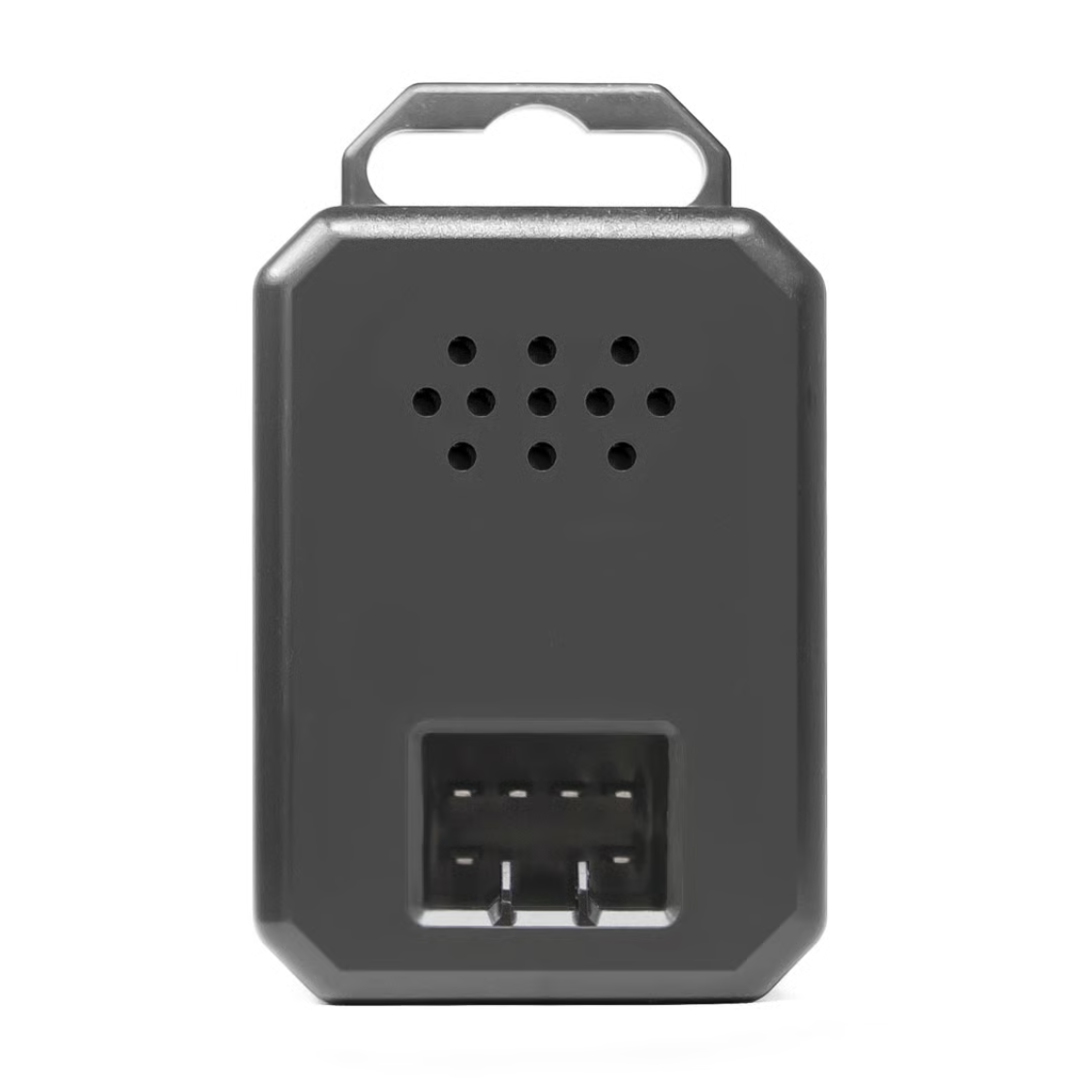

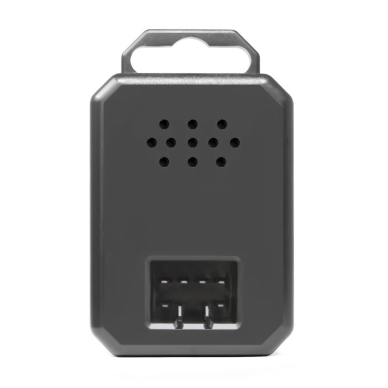

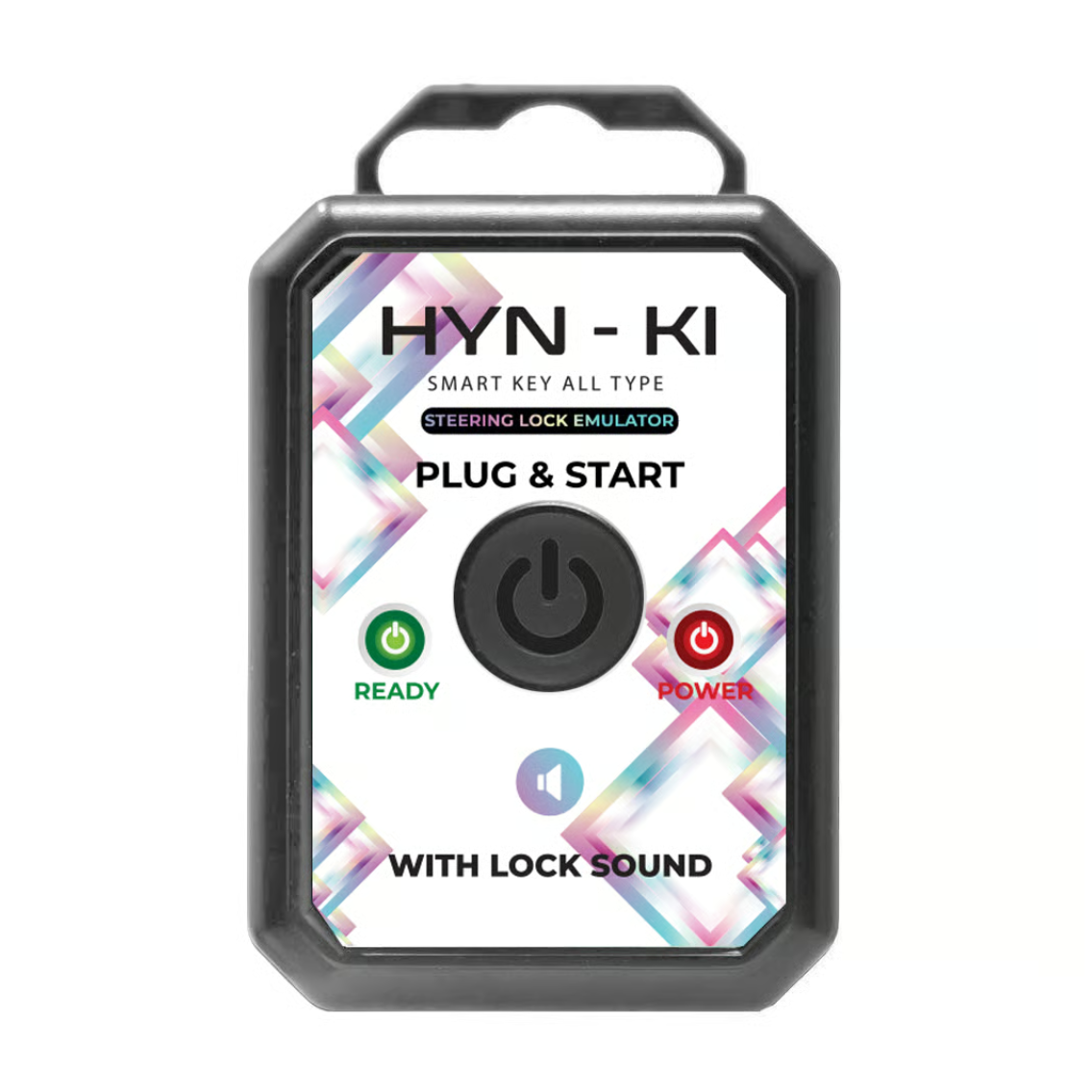

Kia / Hyundai Smart Key ESL / ELV Steering Lock Emulator with Original Connector and Lock Sound

No Programming Required – Plug & Play Solution

New steering lock emulator for Kia and Hyundai vehicles equipped with a Smart Key system. This emulator replaces the faulty Electronic Steering Lock (ESL / ELV), requires no programming, and quickly restores vehicle starting.

Key Features:

• No programming required
• Plug & Play – easy installation
• Original connector
• Steering lock sound simulation (Lock Sound)
• Emulates the original ELV / ESL module
• Eliminates steering lock faults without replacing the expensive OEM unit

Specifications:

• Manufacturer: MK3
• Condition: New
• Weight: 40 g
• Product Code: MK12200

Compatible OEM Part Numbers:

• 81900-2J710
• 81900-3X000
• 81900-F2000
• 81900-C0000
• 81900-A2000
• 81900-C5700
• 81900-2T700
• 81900-F9700
• 81900-2J700
• 81900-G3700
• 81900-A5002

Compatibility:

• Kia vehicles equipped with Smart Key system
• Hyundai vehicles equipped with Smart Key system

Functionality:

• ELV (Electronic Steering Lock) failure is one of the most common starting system problems in Kia and Hyundai vehicles.
• When the steering lock fails, the vehicle may not start even if the Smart Key is fully functional.
• Normally, the original steering lock must be replaced and programmed, making the repair expensive and time-consuming.
• This emulator replaces the faulty ELV module and restores vehicle starting without any programming.
• Simply connect the emulator in place of the original steering lock, and the system is ready to operate.

Installation Instructions:

1. Turn off the ignition.
2. Disconnect the original ELV connector.
3. If the steering lock is in the locked position, remove it from the vehicle.
4. Connect the MK3 emulator using the original connector.
5. Start the vehicle – the system will operate automatically.

Note:

This emulator is intended to replace a faulty original ELV / ESL steering lock module. Thanks to the original connector and Plug & Play design, installation is quick and requires no programming.
