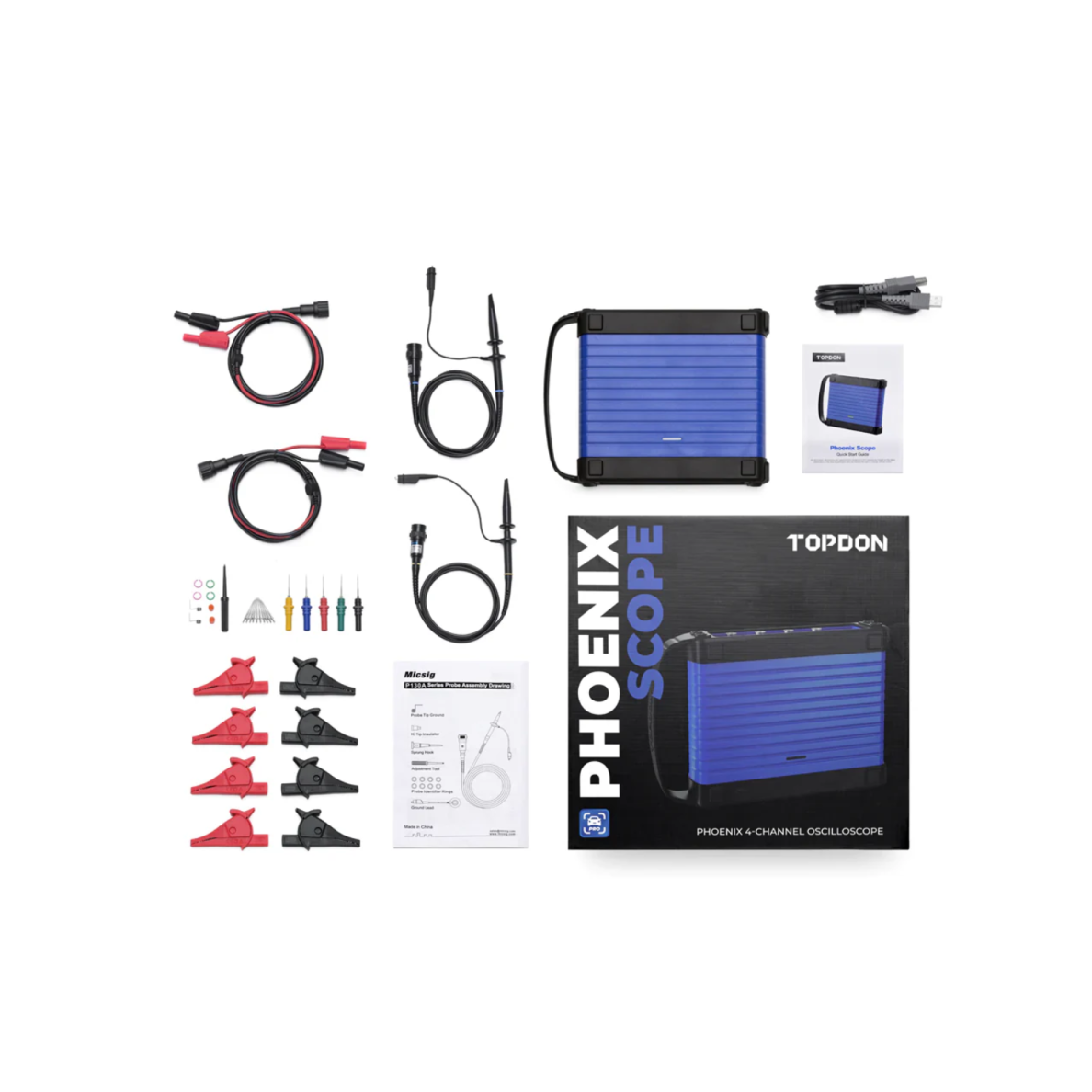

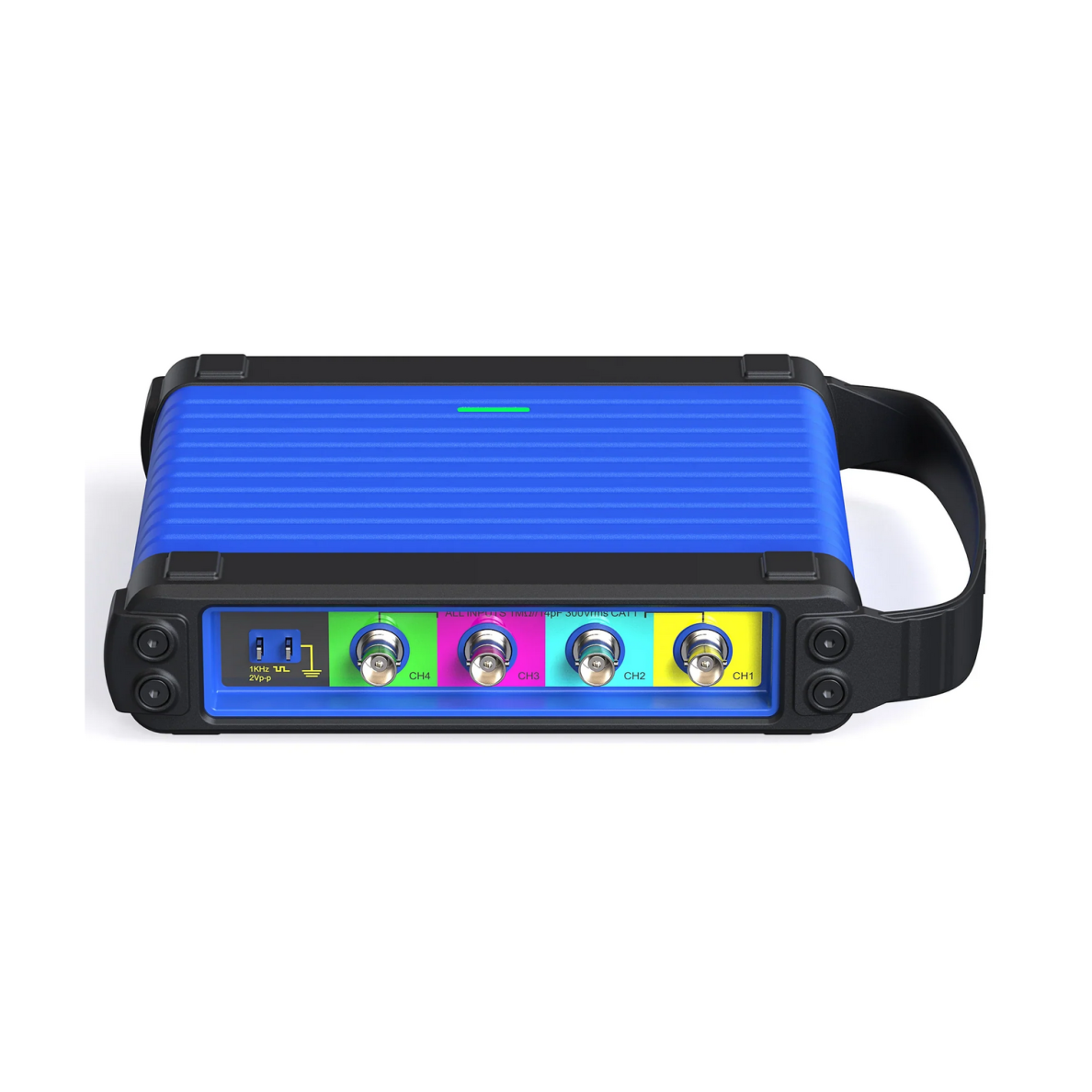

Phoenix 4 Channel Oscilloscope

Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring. It captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis. Furthermore, it can record tested signal waveforms and replay them for further observation and fault analysis.

23 Types of Automatic Measurements

Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching. Automatic measurements become useful and convenient.

Powerful Trigger Function

This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes even the most difficult parts of using the scope extremely easy.

High Memory Depth

With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail views to be fully displayed. The upper area provides a global overview, and the lower area allows precise detail search. Debugging becomes more than twice as fast.

Special Fast Storage Function

Compared with ordinary scopes that require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap. Save time is reduced by over 70%.

Convenient Cursor Operation

Horizontal and vertical cursors can be opened separately with one tap. Each cursor can be dragged independently. Cursor tracking is achieved through a simple highlight tap, increasing overall efficiency by more than 80%.

Soft Keyboard Input

When inputting names and characters, regular scopes require turning a knob to select each character. The Phoenix Scope supports on-screen keyboard input, increasing efficiency by more than 90%.

Customizable and Loadable System Settings

Various preferred system settings can be saved as configuration files. This allows users to load their settings directly without reconfiguring each time.

Waveform Recording and Playback

Waveforms can be recorded and saved in a specified format. They can later be recalled and displayed as reference waveforms on the desired channel.

Mathematical Operations on Waveforms

Supports addition, subtraction, multiplication, and division of two-channel waveforms, as well as Fast Fourier Transform (FFT).

Supports a Variety of Automotive Tests

This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, and combination tests. Each test includes preset parameters and connection instructions.
