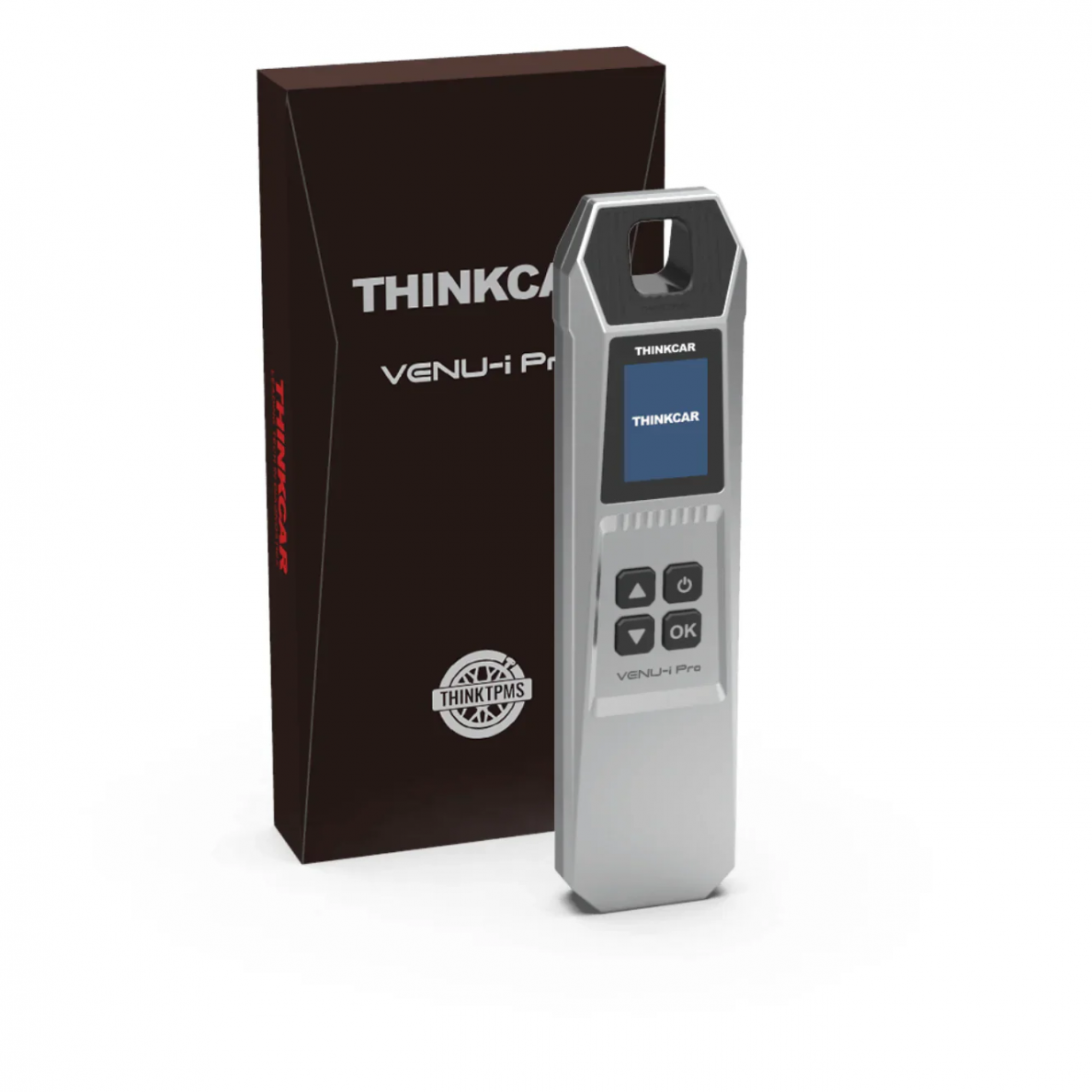

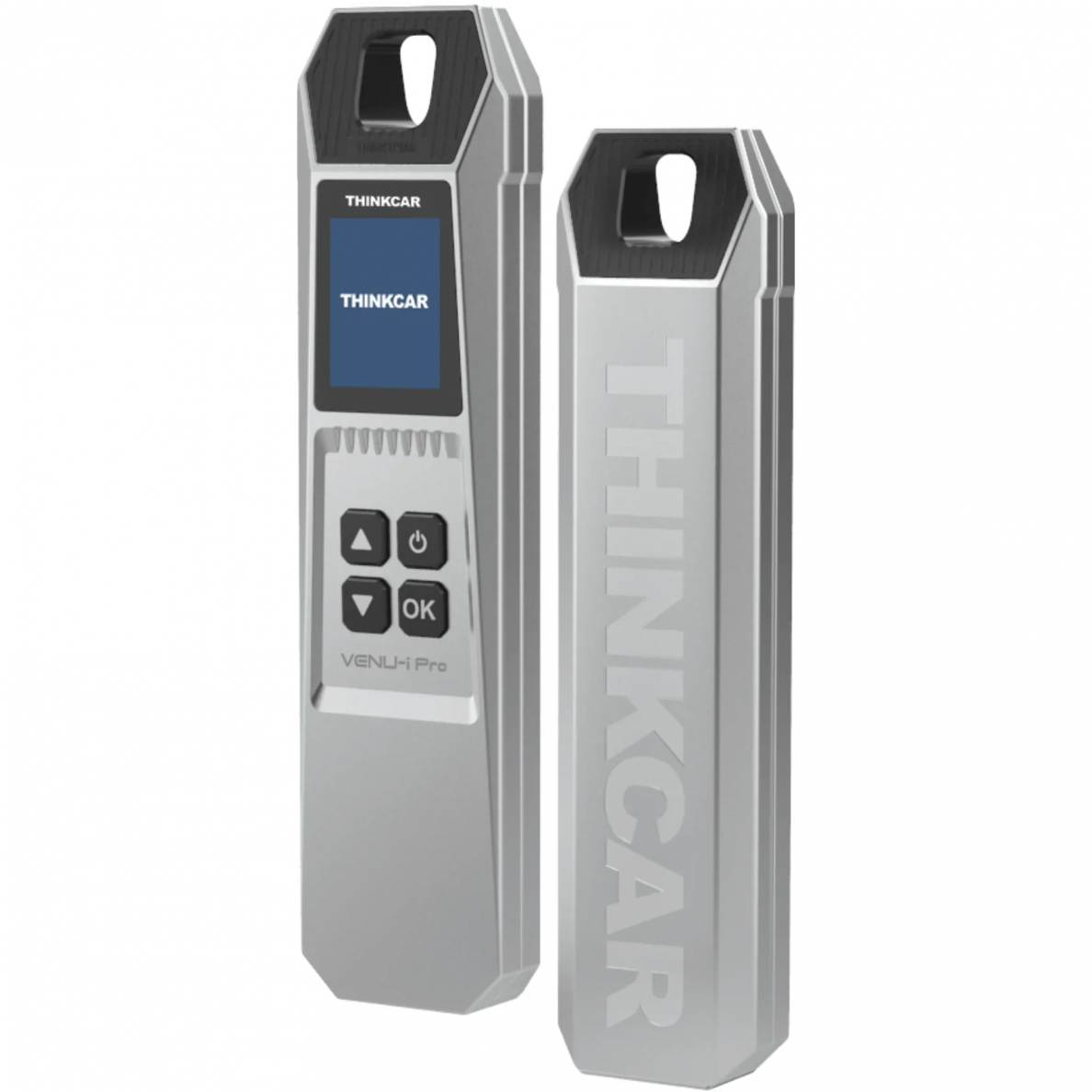

Thinkcar THINKTPMS VENU iPro

Features and Benefits:

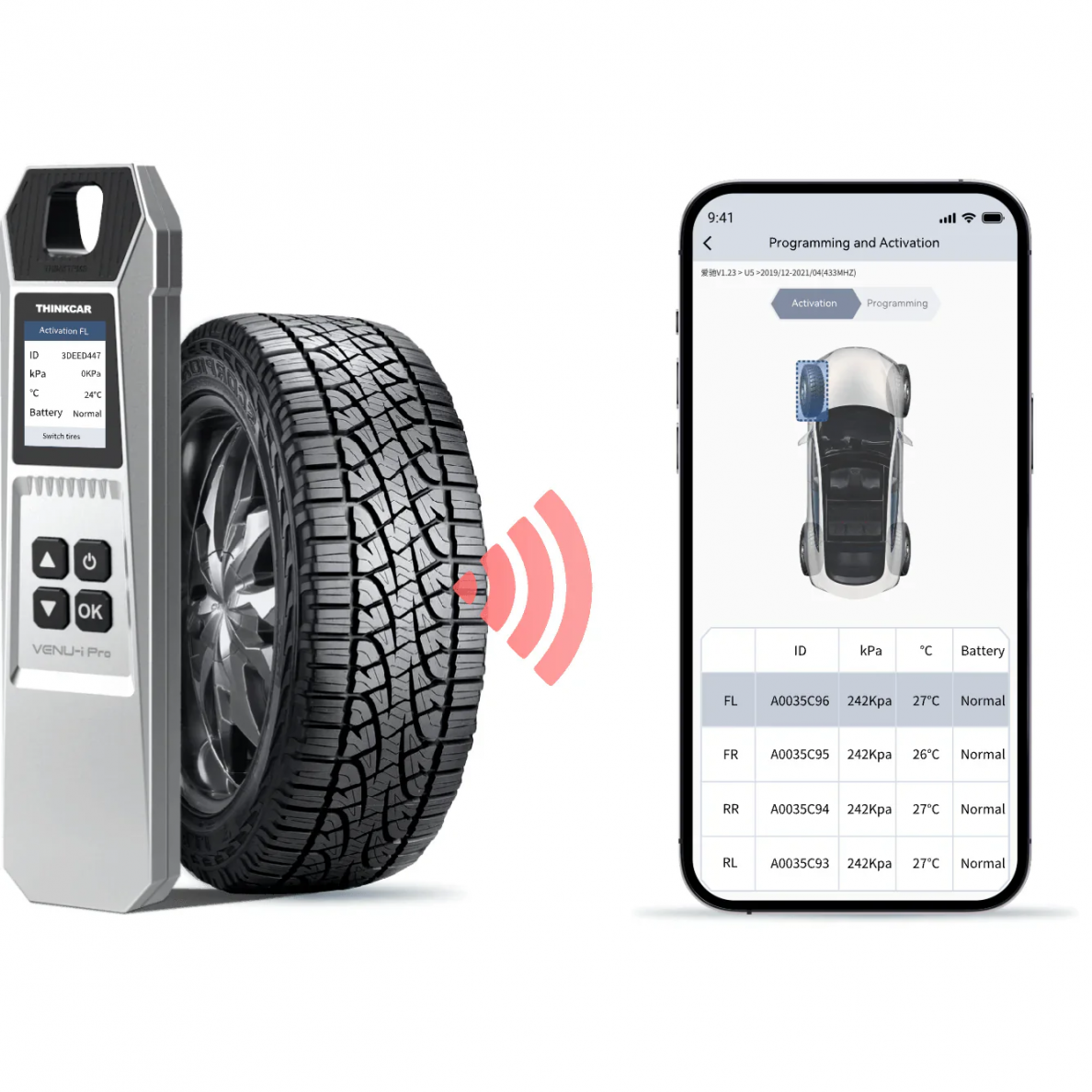

1. Sensor Activation:
THINKCAR VENU iPro can activate all 315 MHz/433 MHz tire pressure sensors, read, copy, write sensor IDs, and read tire pressure data (pressure, temperature, battery status).

2. Sensor Programming:
Unlimited reprogramming is supported for more than 98% of imported models with tire pressure systems. IDs can be generated manually, by copying, or automatically.

3. Sensor Learning:
The tire pressure learning function enables fault diagnosis, reading, and clearing error codes.

4. Diagnostics:
THINKCAR VENU iPro detects and clears TPMS system fault codes. It supports more than 140 brands and works with OBDII diagnostics following these protocols:

• ISO 14230-4 (KWP2000)
• ISO 15765-4 (CAN)
• ISO 9141-2
• ISO 14229 (uds)
• SAE J1850 (VPW & PWM)

5. Wide Model Coverage:
It supports Asian, European, and American car brands, such as:

• Asia: Daewoo, Honda, Kia, Mazda, Mitsubishi, Nissan, Toyota, Hyundai, and more.
• Europe: Audi, BMW, Mercedes-Benz, Renault, Peugeot, Citroen, Volvo, VW, and more.
• America: Chrysler, Ford, GM.
  And it’s constantly updated.

Usage Instructions:

• Download the Thinkdiag app (iOS) or i-VENU app (Android), enable Bluetooth on your phone, and start the diagnosis via the app.
• Use it with THINKCAR and Mucar products (e.g., THINKSCAN 689BT, THINKSCAN 672, Mucar VO8, Mucar VO7, Mucar VO8/VO7S/VO7/VO6, Thinkdiag, Thinkdiag2, BD6, Kingbolen Ediag/Ediag Plus, and more).

Download and Activation Steps:

1. Install the Thinkdiag app on your smartphone.
2. Create an account and activate the device.
3. Connect the device to the OBD2 port and start the vehicle.
4. Connect to the device via Bluetooth.
5. Select and download the diagnostic software for your vehicle’s manufacturer.
6. Start diagnosing.

Specifications:

• Bluetooth version: 5.0 (range up to 10 m)
• Supported platforms: Android 7.0 or higher, iOS 11.0 or higher
• Dimensions: 84.1 mm x 50.4 mm x 27.2 mm
• Weight: 78 g
• Temperature range: Operating: -10°C to 50°C; Storage: -20°C to 70°C
• Language support: English, French, Spanish, German, Russian, Portuguese, Japanese, Simplified and Traditional Chinese, Italian, Polish, Turkish, Czech, Finnish, Slovak, Serbian, Croatian

Package Includes:

• THINKTPMS VENU iPro device x1
• Quick start guide x1
• Packaging box x1
