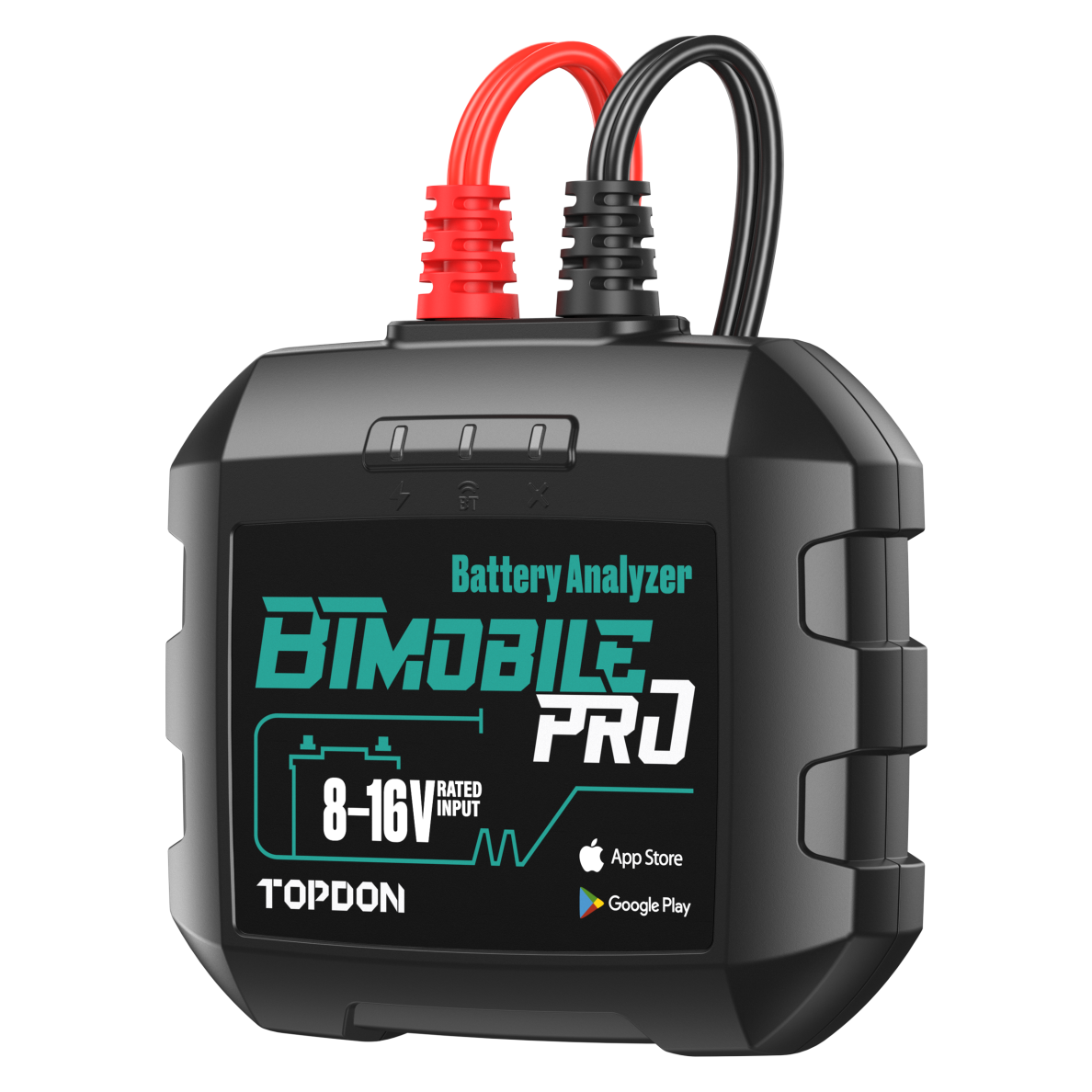

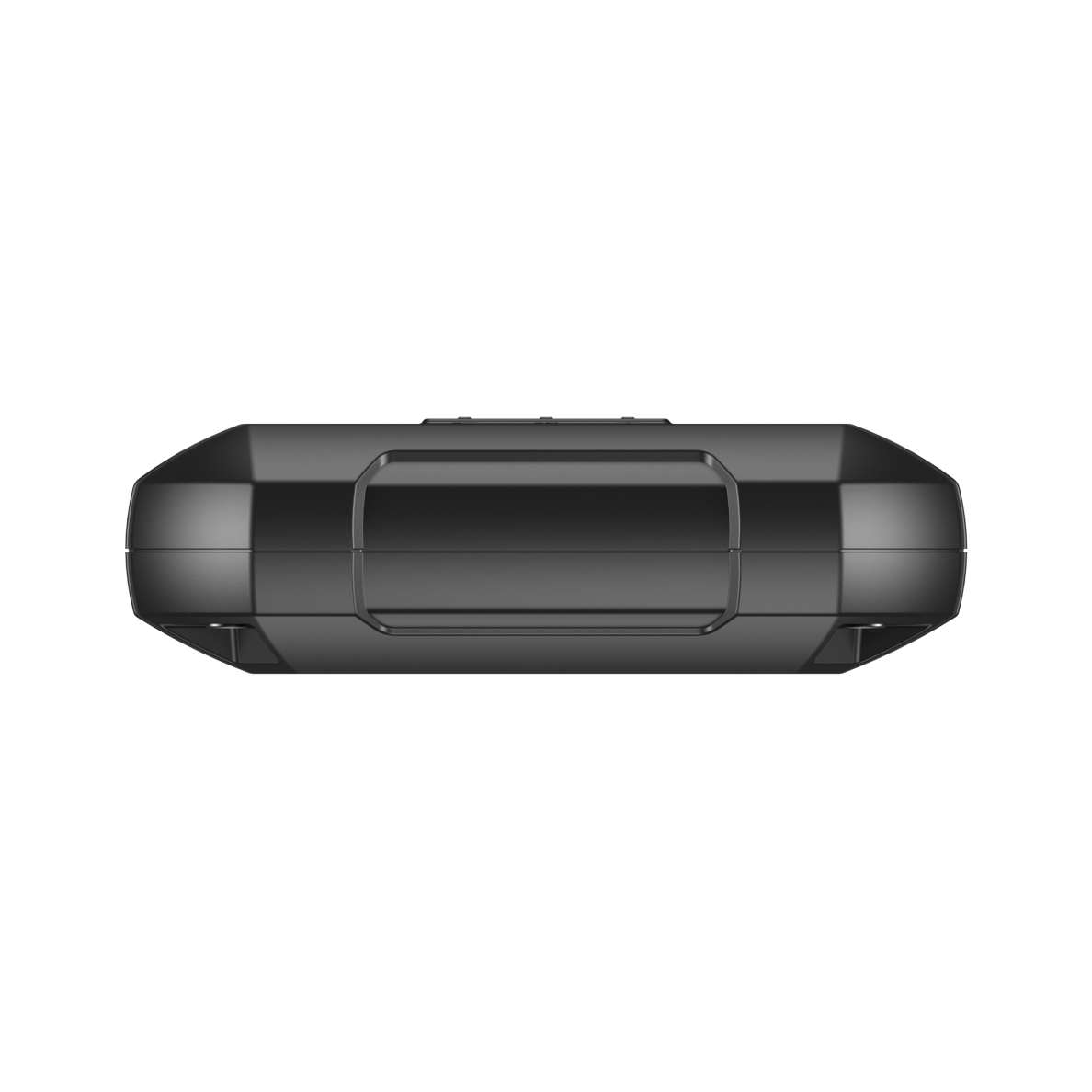

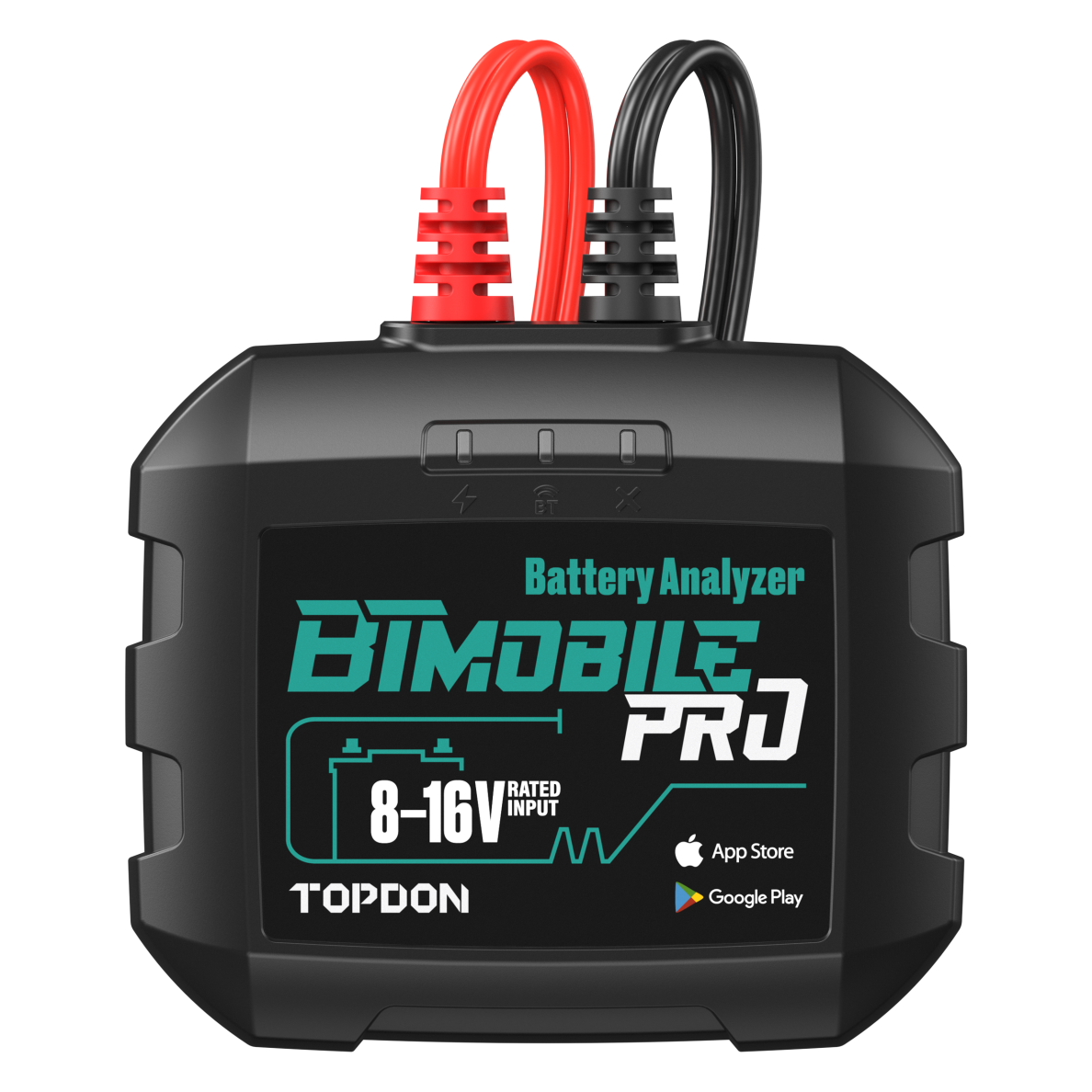

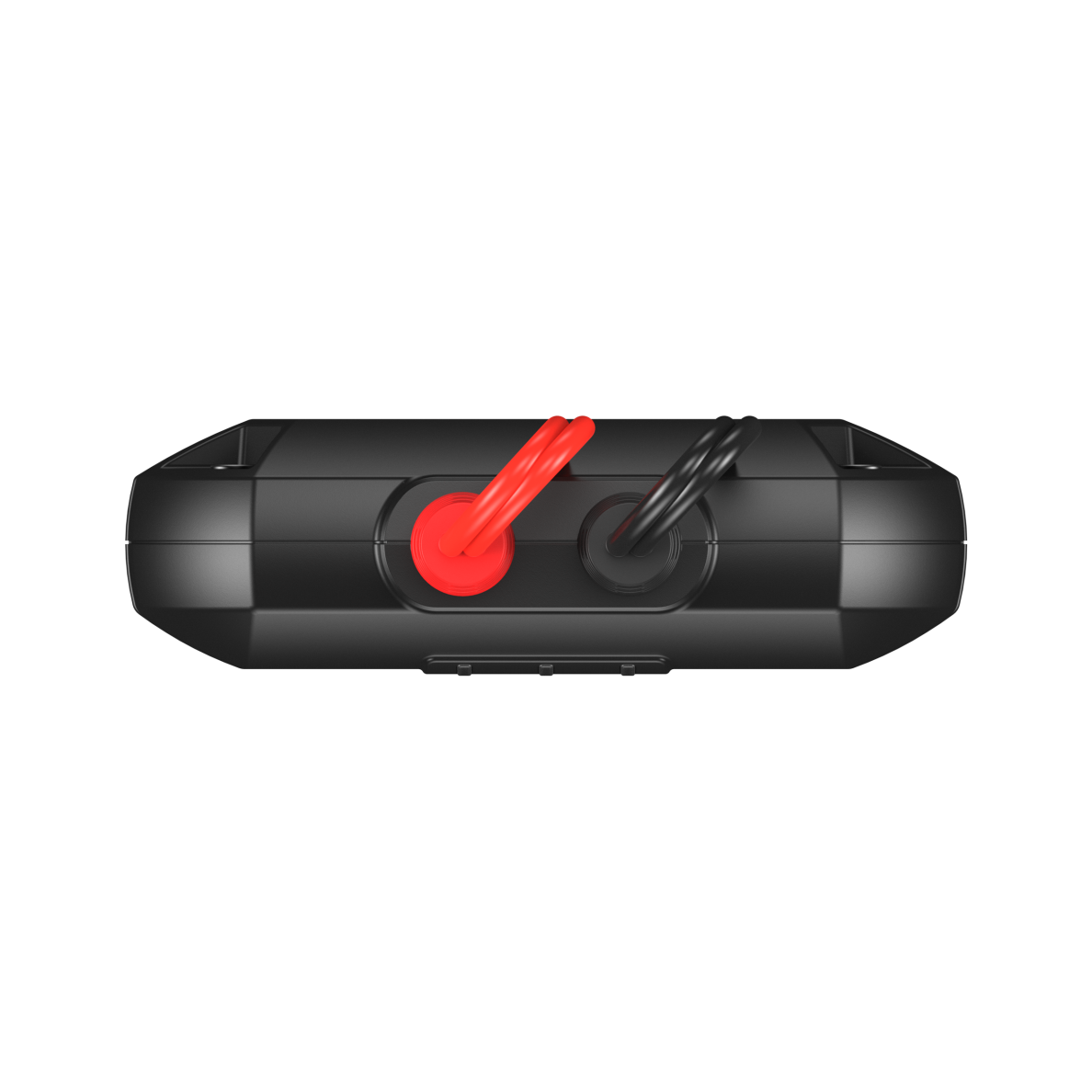

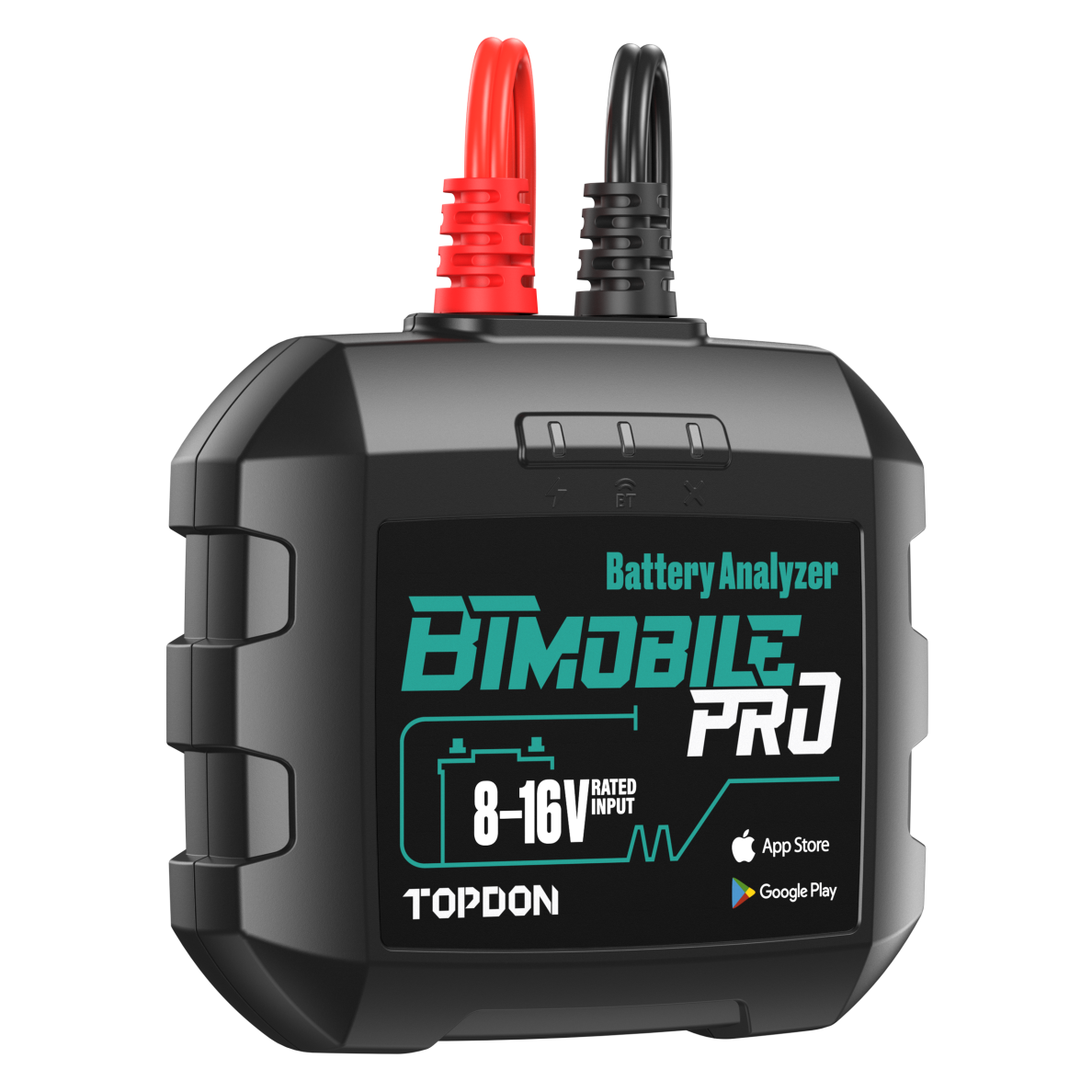

TOPDON BTMobile ProS – Battery Analyzer

BTMobile ProS is TOPDON®’s latest battery analyzer designed for 12V batteries ranging from 100 to 2000 CCA. It supports CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB battery standards. Using advanced conductivity detection technology, it accurately identifies faulty 12V battery cells. The device provides clear and easy-to-understand information about battery health, alternator charging status, and starter cranking performance. The built-in Ultra Safe protection function safeguards against short circuits, reverse polarity, and over-voltage, allowing safe connection to any battery.

Key Features

All data in one view
System test displays all essential data at a glance.

Get the right battery every time
Battery Library shows compatible batteries in detail.

Lifetime data recorder
Automatically records all test results.

Compact outside, powerful inside
Premium safety design for peace of mind.

Powerful and widely used
Supports regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries.

Monitor your car battery health
Turns Phoenix diagnostic scanners into professional-level battery testers.

Specifications

Operating Voltage: DC 8V–16V
Clamp Cable Length: 556 mm
Operating Temperature: -10°C to 45°C
Storage Temperature: -20°C to 75°C
Dimensions: 100.9 × 87.6 × 30 mm
Weight: 257 g
Protection Functions: Reverse polarity protection, short circuit protection, over-voltage protection

Packing List

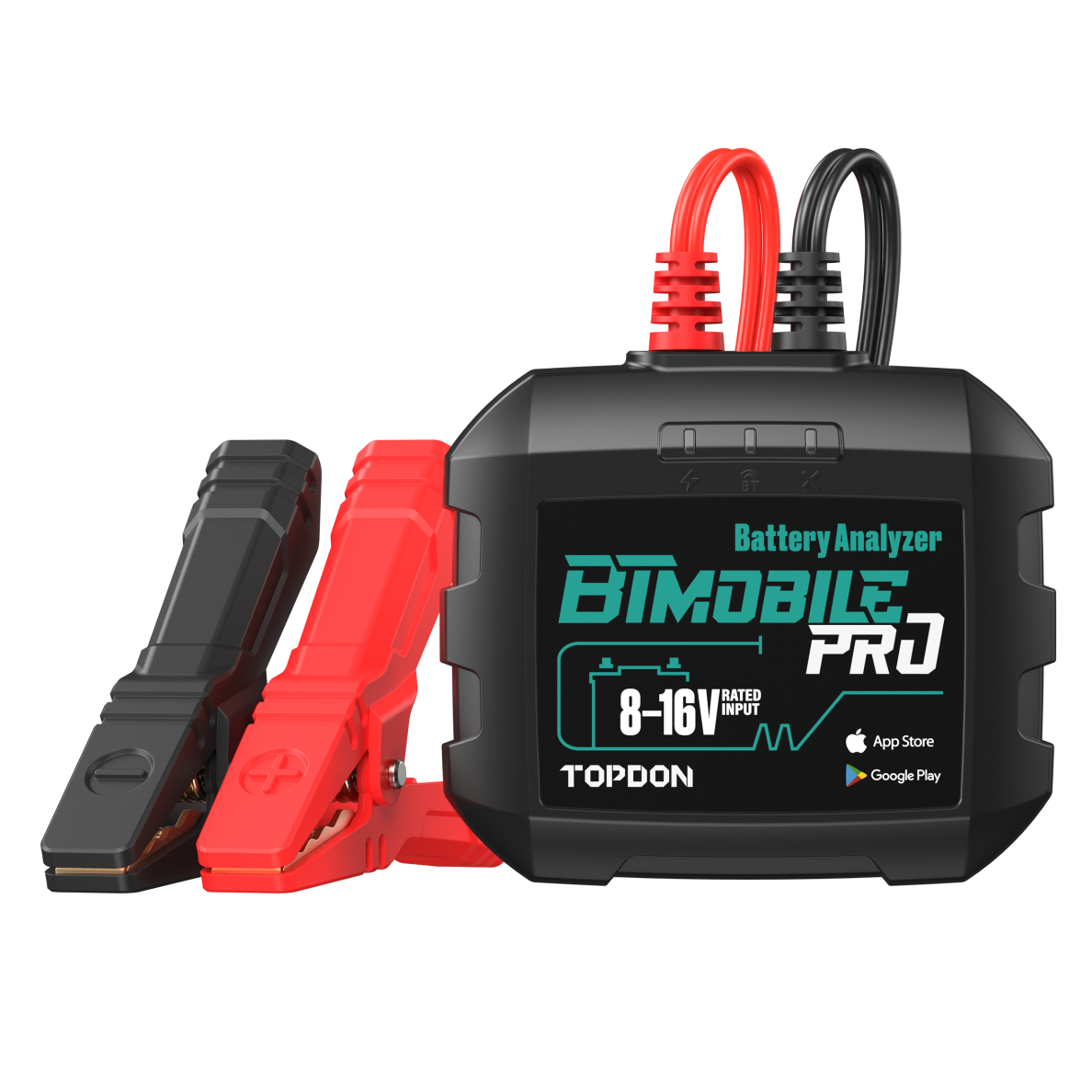

BTMobile ProS with battery clamps
Carrying case
User manual

Note

Attention – diagnostic functions and their availability are individual for each vehicle. Not all described functions may be supported by your vehicle.
