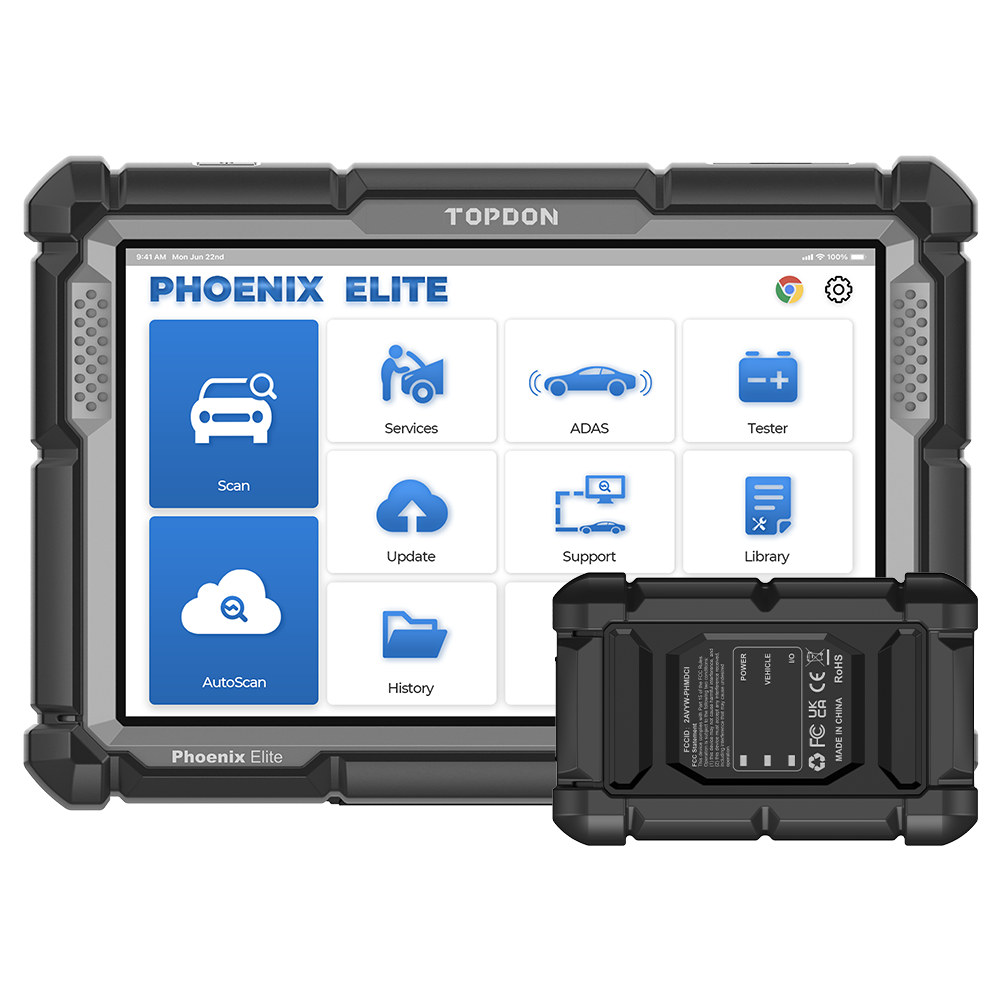

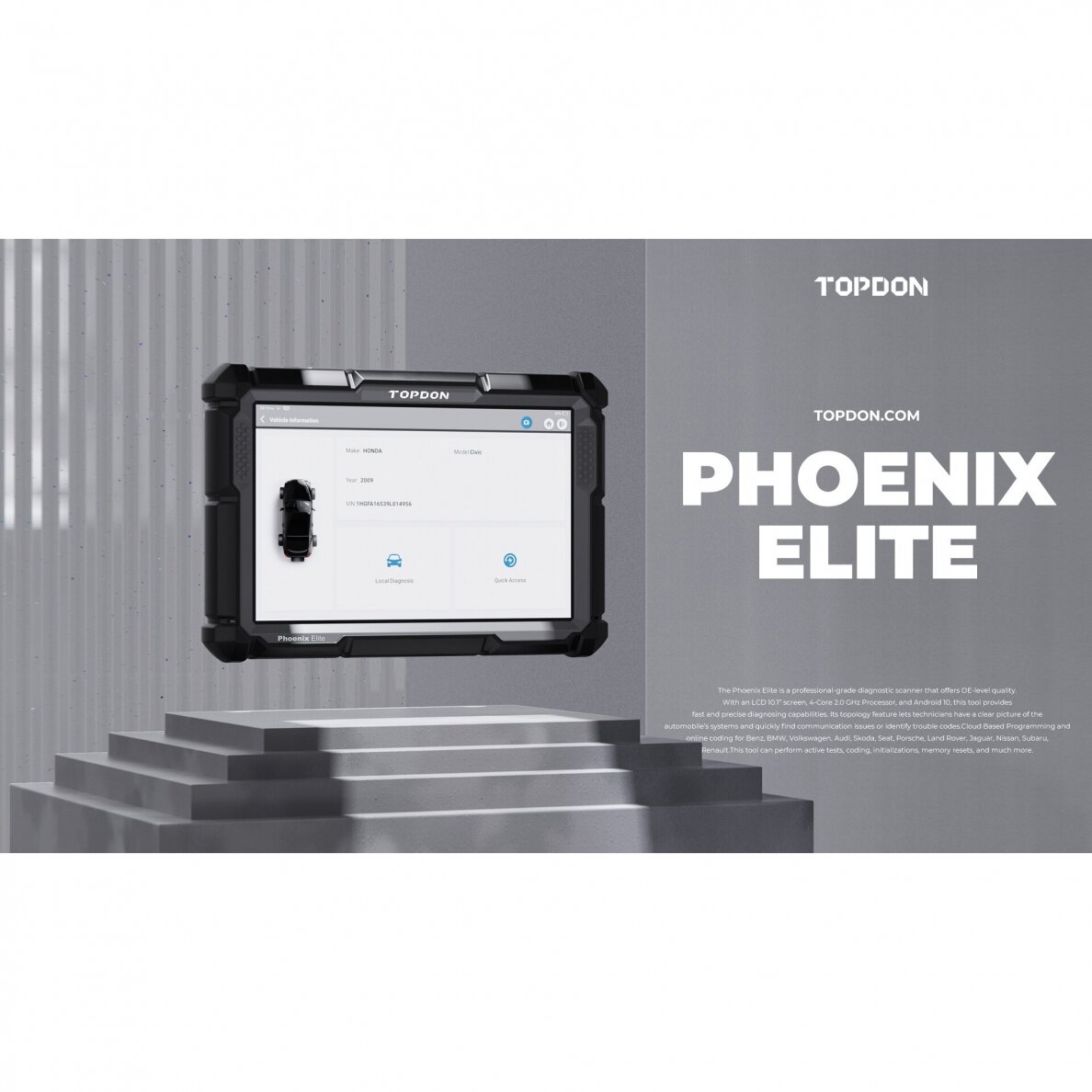

Topdon Phoenix Elite

The Phoenix Elite is a professional-grade diagnostic scanner offering OE-level capabilities. With a 10.1-inch LCD screen, a quad-core 2.0 GHz processor, and the Android 10 operating system, this tool delivers fast and precise diagnostics. Its topology function allows technicians to clearly view vehicle sensor systems and quickly identify communication issues or error codes. The Elite provides special maintenance functions and online coding for various car brands. It can perform active tests, coding, initialization, memory resets, and much more.

Features

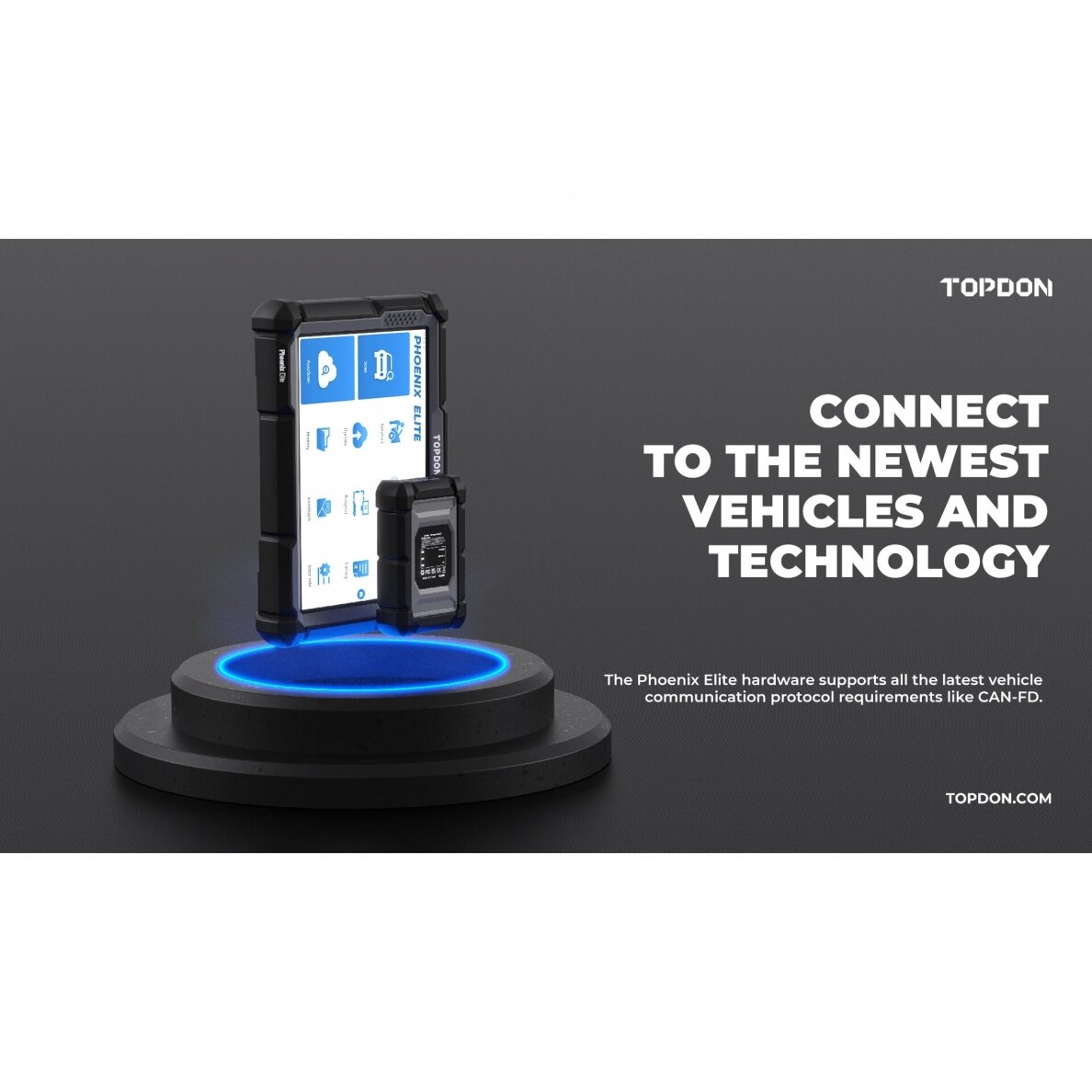

Connectivity with Modern Vehicles

Vehicle connection is enhanced with the latest communication protocols. Phoenix Elite features wireless VCI and CAN-FD capabilities.

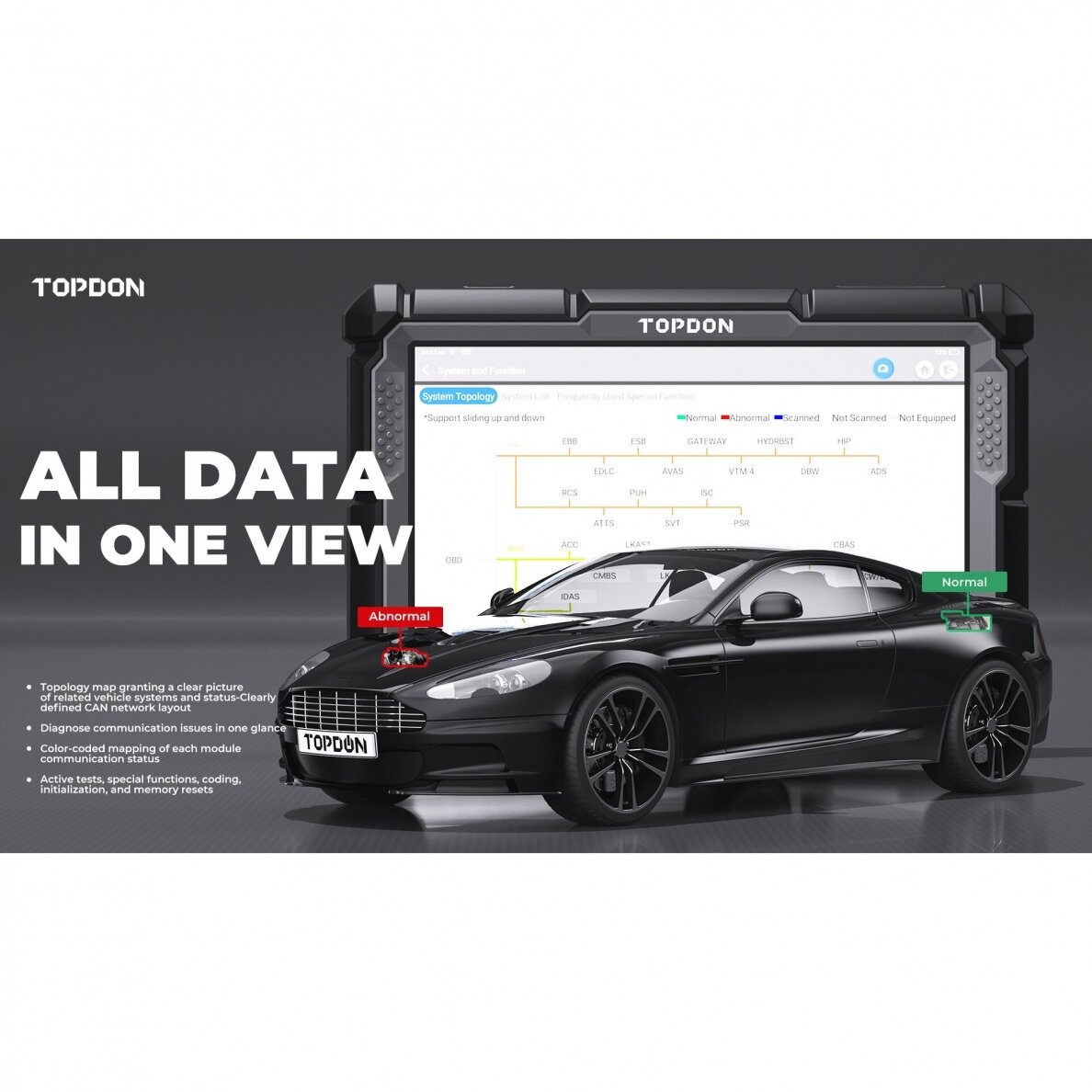

All Information on One Screen

• The topology map displays related vehicle systems and the CAN network.
• Diagnose communication issues instantly.
• Color-coded maps indicate the status of each module's connection.
• Perform active tests, special functions, coding, initialization, and memory resets.

Guided Procedures for VAG Vehicles

Step-by-step guided diagnostic procedures for VW and Audi vehicles.

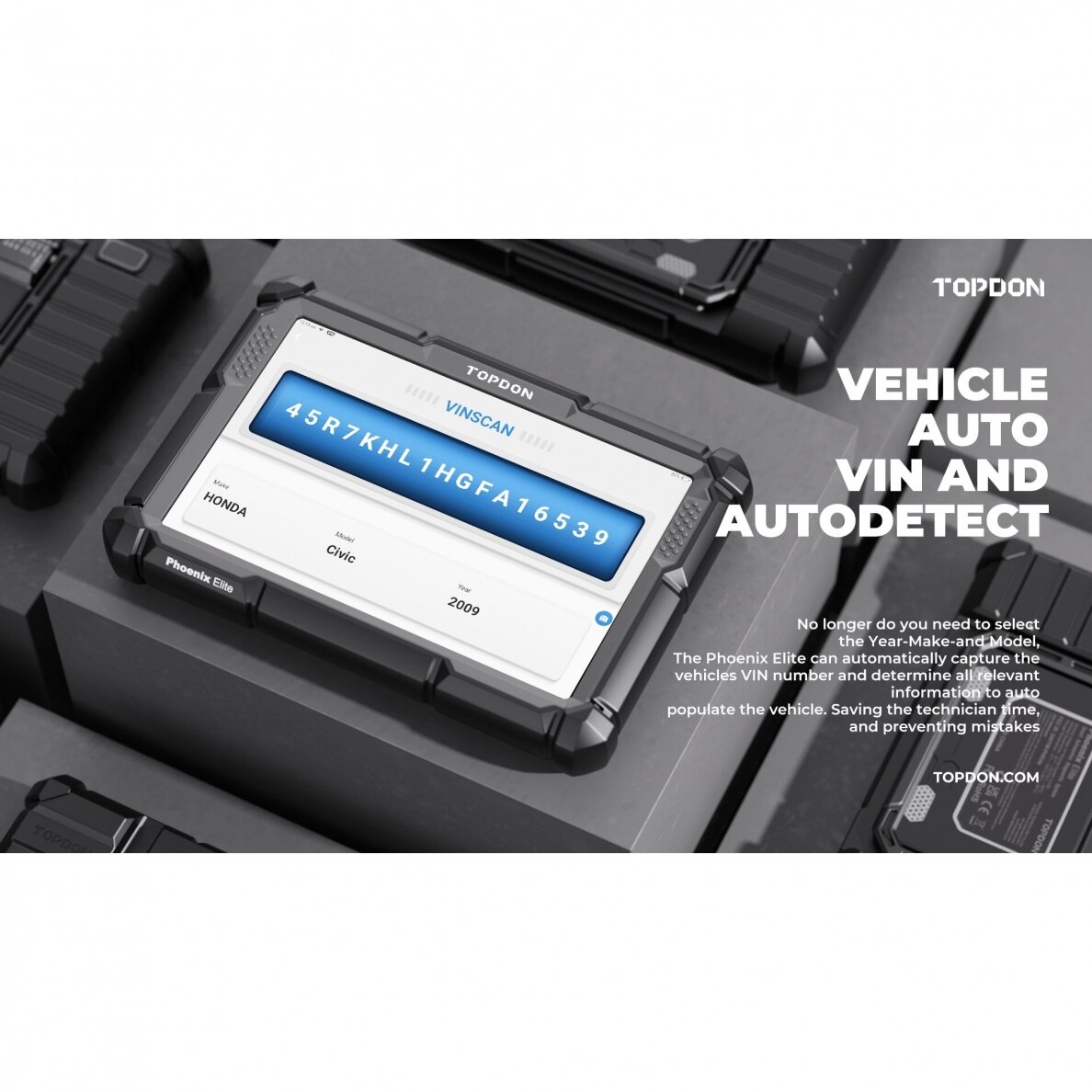

Automatic Vehicle VIN and Detection

Phoenix Elite automatically scans the vehicle's VIN and retrieves all necessary information, saving time and reducing errors.

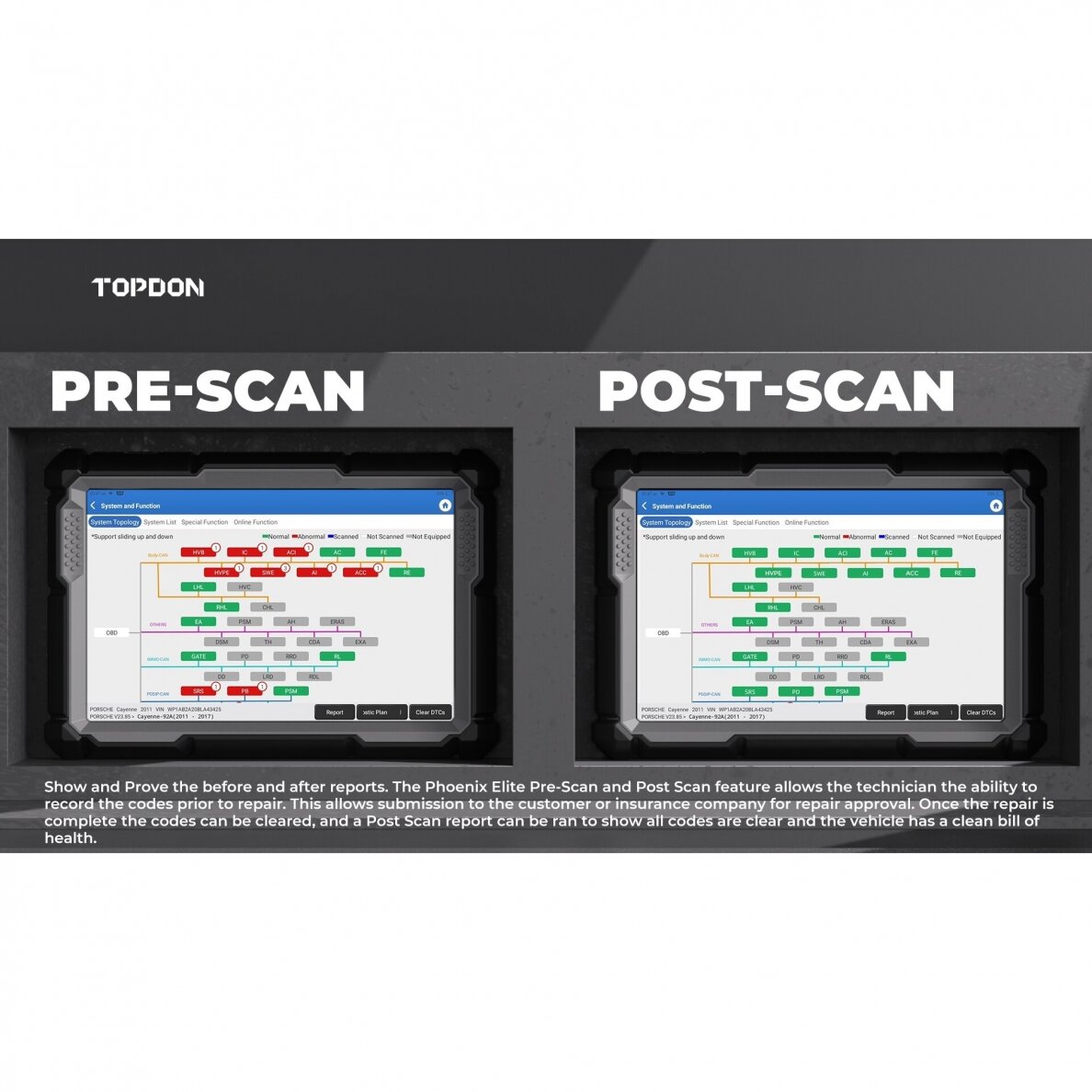

Pre-Scan and Post-Scan Reports

Pre-scan and post-scan functions allow technicians to document error codes before repairs. These reports can be shared with insurance companies and customers for approval. Post-repair scans verify that all errors have been resolved.

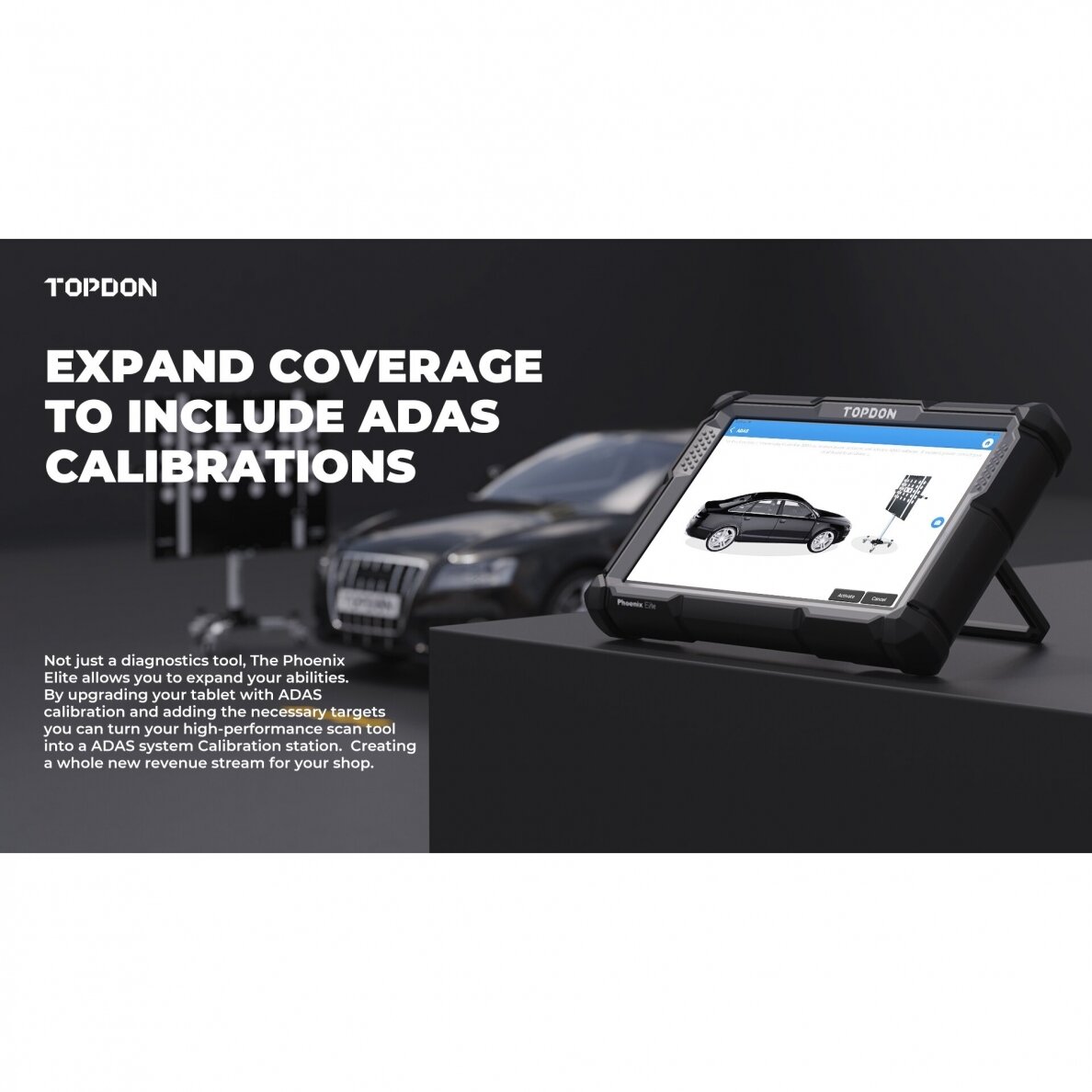

Expand Your Capabilities with ADAS Calibration

Phoenix Elite goes beyond diagnostics to offer ADAS calibration services for repair shops. Download ADAS updates and pair with the Phoenix ADAS system to transform the Elite into a calibration station, creating a new revenue stream for workshops.

Specifications

Phoenix Elite:

• Display: 10.1-inch LCD touchscreen, 1280 × 800
• Processor: Quad-core, 2.0 GHz, Android 10.0
• RAM: 4 GB
• ROM: 64 GB
• Battery: 12000 mAh / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -20℃~60℃ (-4℉~140℉)
• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Dimensions: 278 × 191 × 48 mm (10.94 × 7.52 × 1.89 inches)
• Package Dimensions: 468 × 320 × 143 mm (18.43 × 12.60 × 5.63 inches)
• Languages: 24 supported languages (English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian)

Phoenix VCI:

• Operating Temperature: -10℃~50℃ (14℉~122℉)
• Operating Voltage: 9~18V
• Operating Current: ≤ 150 mA
• Dimensions: 127 × 82 × 36 mm (5 × 3.22 × 1.42 inches)
• Newly Supported Protocol: CANFD

Package Contents

• Phoenix Elite – 1 unit
• Phoenix MDCI (VCI Dongle) – 1 unit
• OBDI Adapter Box Switching Line – 1 unit
• OBDII Extension Cable – 1 unit
• Cigarette Lighter Cable – 1 unit
• Type-C to USB Cable – 1 unit
• Battery Clamp/Cable Set – 1 unit
• Power Adapter – 1 unit
• User Manual – 1 unit
• Password Envelope – 1 unit
• 10 Non-16 Pin Adapter Cable Set – 1 set
• Fuses (φ5 × 20mm) – 4 pcs
• Fuses (φ6 × 30mm) – 2 pcs
• BMW F-Chassis Programming Cable – 1 unit

Warranty: 2 years.
Free Software Updates: 2 years.
