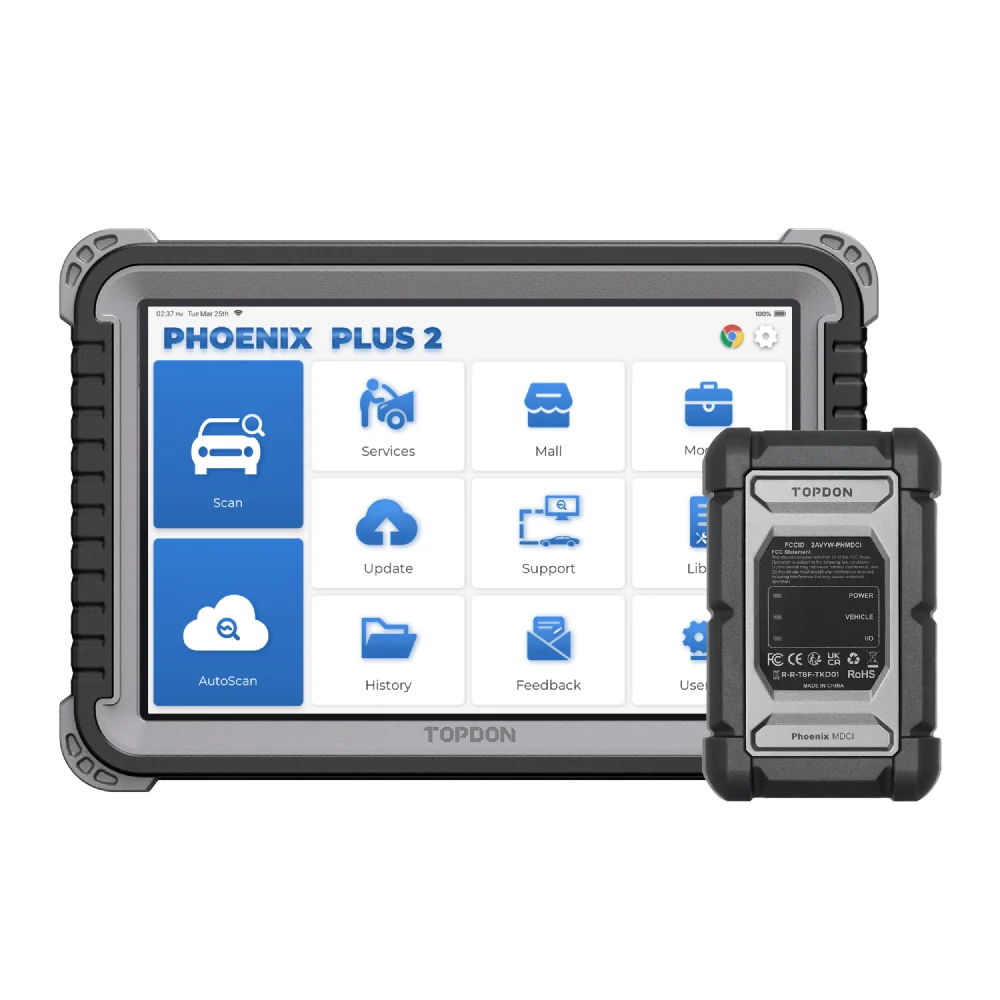

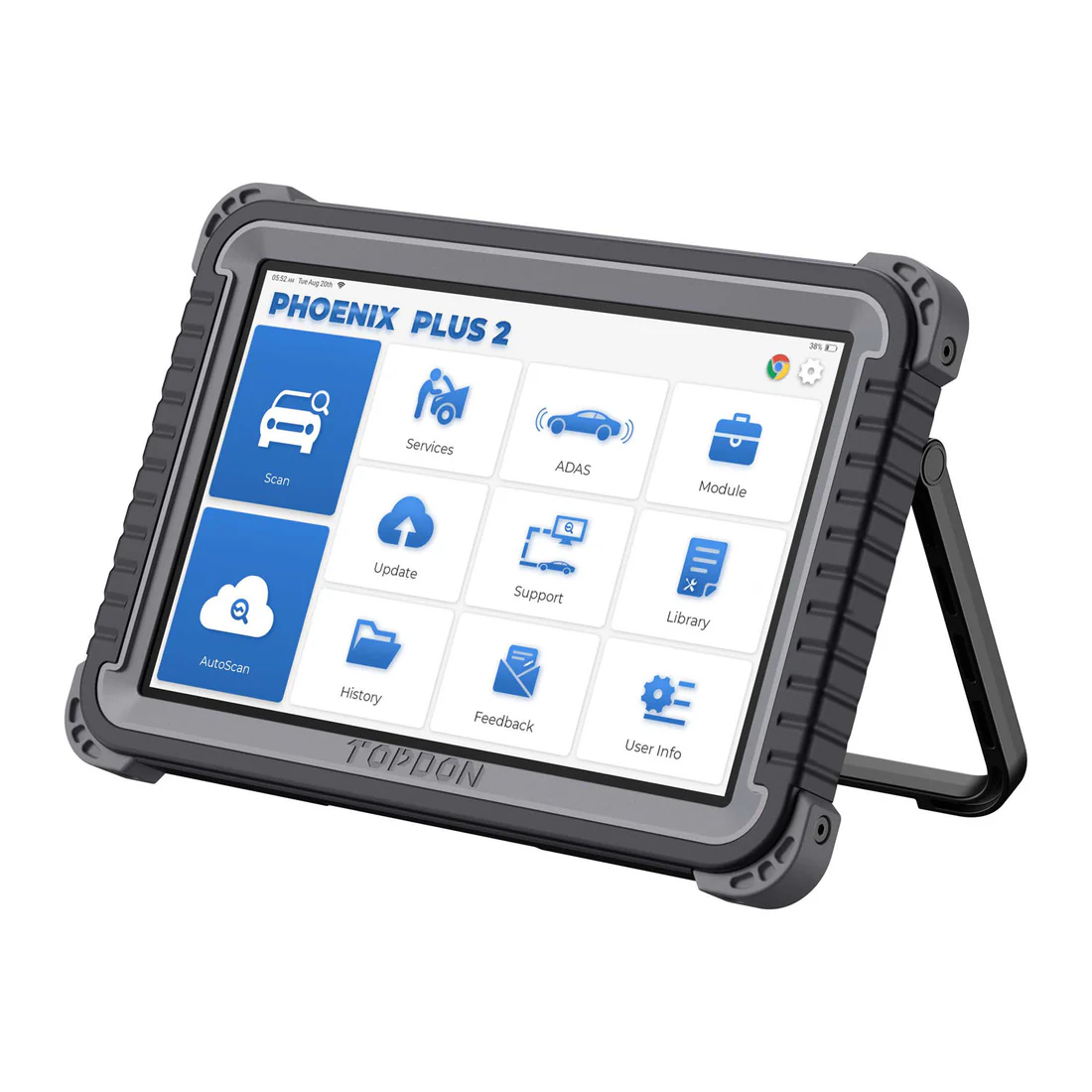

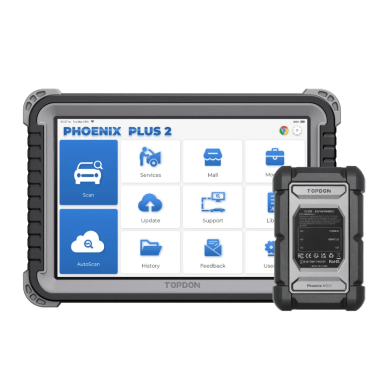

TOPDON Phoenix Plus 2

TOPDON Phoenix Plus 2 is the upgraded version of the Phoenix Plus, designed for professional diagnostics with support for CAN-FD protocol. It ensures compatibility with the latest vehicle models, including GM and Chrysler from 2020 onwards.

Key Features

ECU Coding & Customization
Perform advanced vehicle configuration with ECU and online coding. Unlock hidden features, disable unwanted functions, and personalize settings for improved performance.

OE-Level Diagnostics with CAN-FD
Covers over 160 vehicle brands and essential systems such as engine, transmission, ABS, SRS. CAN-FD protocol ensures ultra-fast communication with modern ECUs.

FCA SGW Access
Supports direct access to FCA Secure Gateway, allowing precise diagnostics and system adjustments on FCA vehicles (Fiat, Chrysler, Jeep, Dodge, etc.).

Topology Mapping & Live Data
View full system architecture with topology mapping. Graphical live data presentation makes issue detection and analysis faster and clearer.

Active Tests & Actuator Control
Interact with components in real time to isolate faults and verify repairs instantly. Increases repair efficiency and accuracy.

41+ Maintenance Services
Access over 41 service reset functions including oil reset, throttle adaptation, battery matching, EPB, SAS, DPF, and more.

Smart Features for Daily Use
AutoVIN for quick vehicle identification. VAG guided functions for step-by-step operations. 1-click WiFi updates for ongoing improvements.

Wireless Diagnostics with Strong Battery
Enjoy cordless operation with a robust 12,600 mAh battery – built for extended use in professional environments.

Expandable with Add-On Modules
Compatible with: ADAS calibration, BTMobile ProS for battery testing, TC001 thermal camera, and oscilloscope for electrical signal analysis.

Technical Specifications

• Display: 10.1” LCD, 1280 × 800

• CPU: Quad-core, 2.0 GHz

• Operating System: Android 10.0

• RAM: 4 GB

• ROM (Storage): 64 GB

• Battery: 12,600 mAh / 3.8V

• Operating Voltage: 9–18 V

• Storage Temperature: -20℃ to 60℃

• Operating Temperature: 0℃ to 50℃

• Dimensions: 277.3 × 190.8 × 44.5 mm

• Package Size: 468 × 320 × 143 mm

• Net Weight: 1576 g

• Multilingual Support: 29 languages (English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech, Norwegian, Danish, Swedish, Thai, Bulgarian, Indonesian, Khmer)

Package Contents

• 1 × Phoenix Plus 2

• 1 × MDCI Dongle

• 1 × Battery Clamp/Cable Set

• 1 × Type-C to USB Cable

• 1 × OBDI Adapter Box Transfer Line

• 1 × Cigarette Lighter Cable

• 2 × Fuse (φ6×30mm)

• 4 × Fuse (φ5×20mm)

• 1 × Power Adapter

• 1 × OBDII Extension Cable

• 1 × BZ-38 (Mercedes-Benz)

• 1 × TA-17 (Toyota)

• 1 × B-20 (BMW)

• 1 × HA-3 (Honda)

• 1 × M/H-12+16 (Mitsubishi/Hyundai)

• 1 × TA-22 (Toyota)

• 1 × G/V-12 (GM/VAZ)

• 1 × CR-6 (Chrysler)

• 1 × NN-14+16 (Nissan)

• 1 × FT-3 (Fiat)

• 1 × User Manual

• 1 × Packing List

• 1 × Carrying Case
