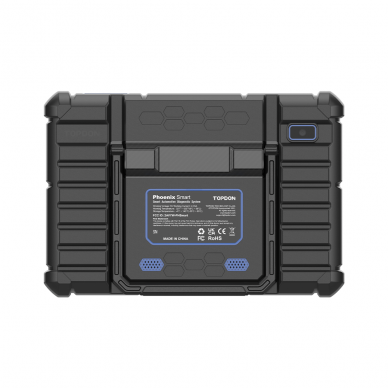

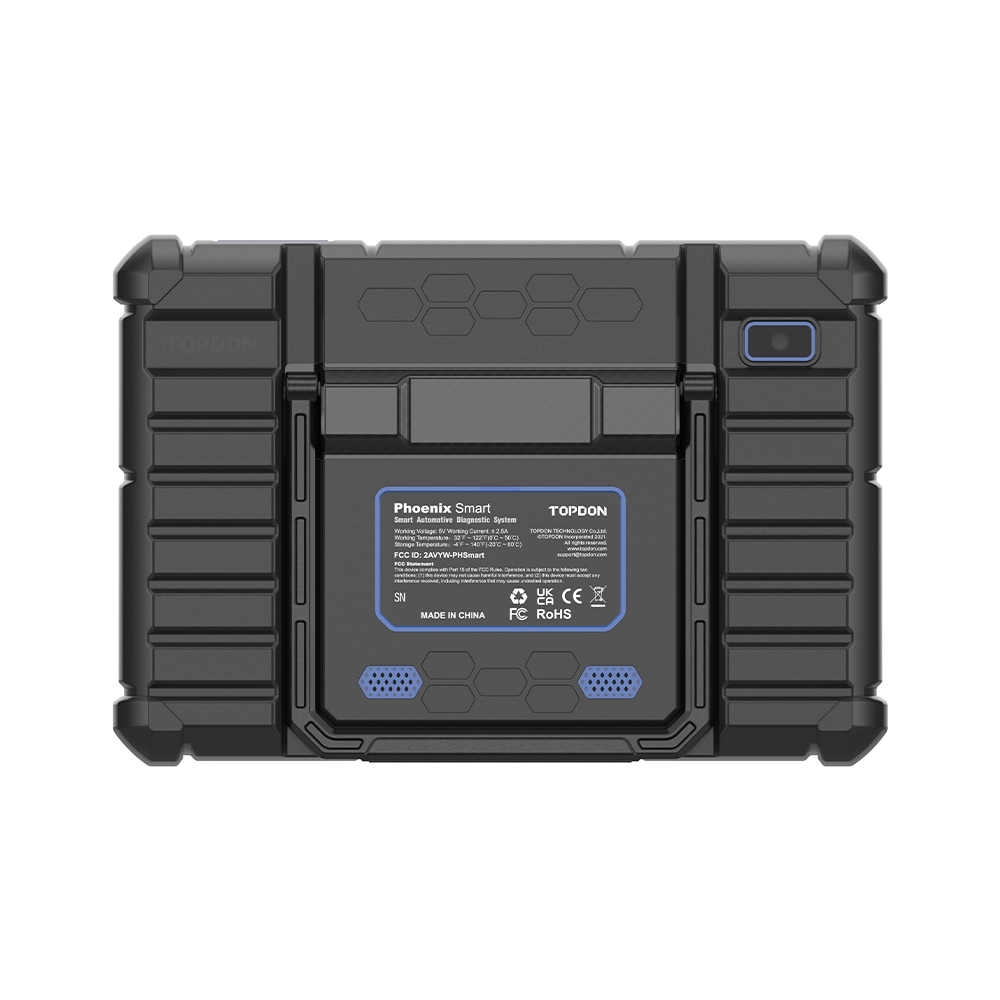

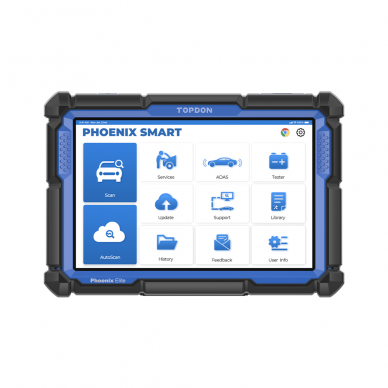

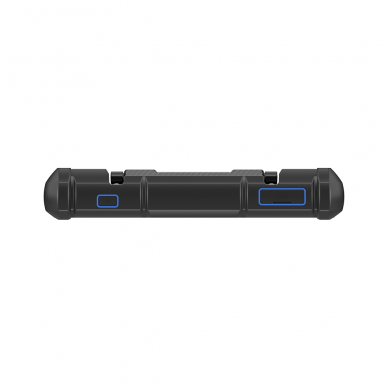

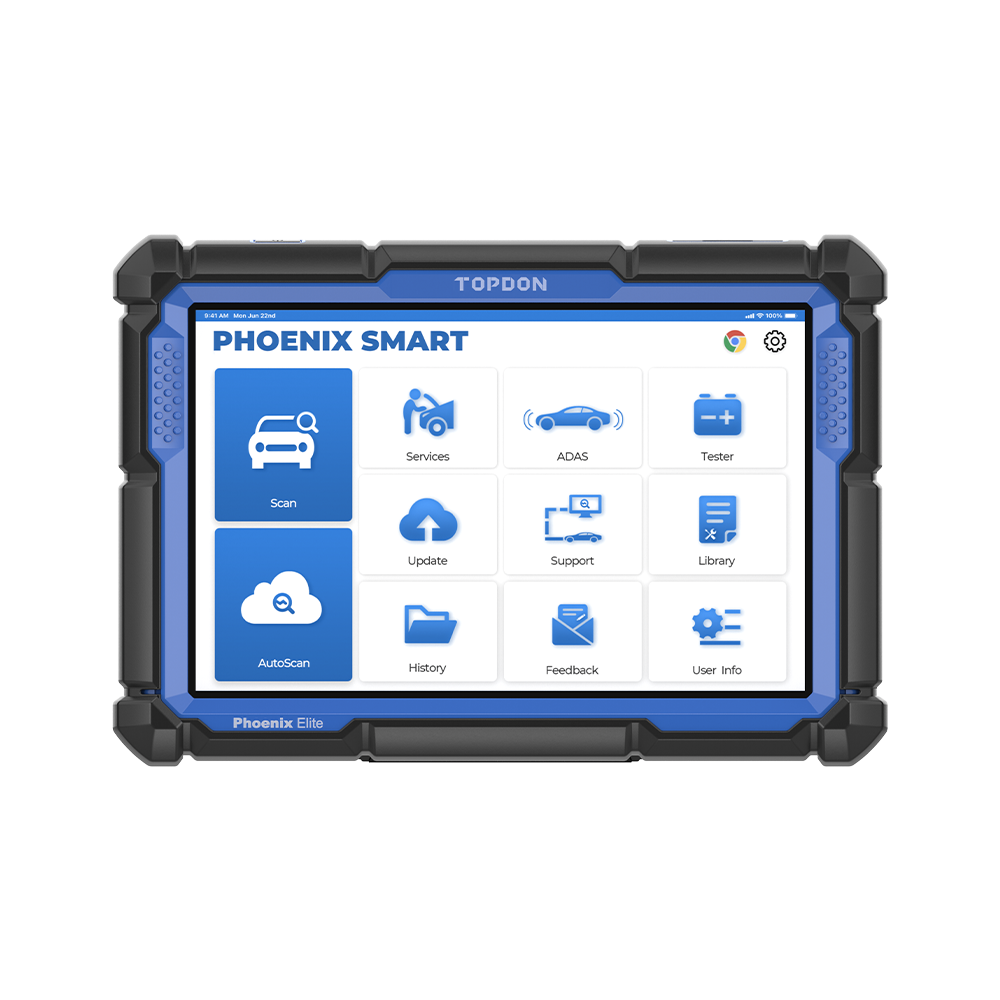

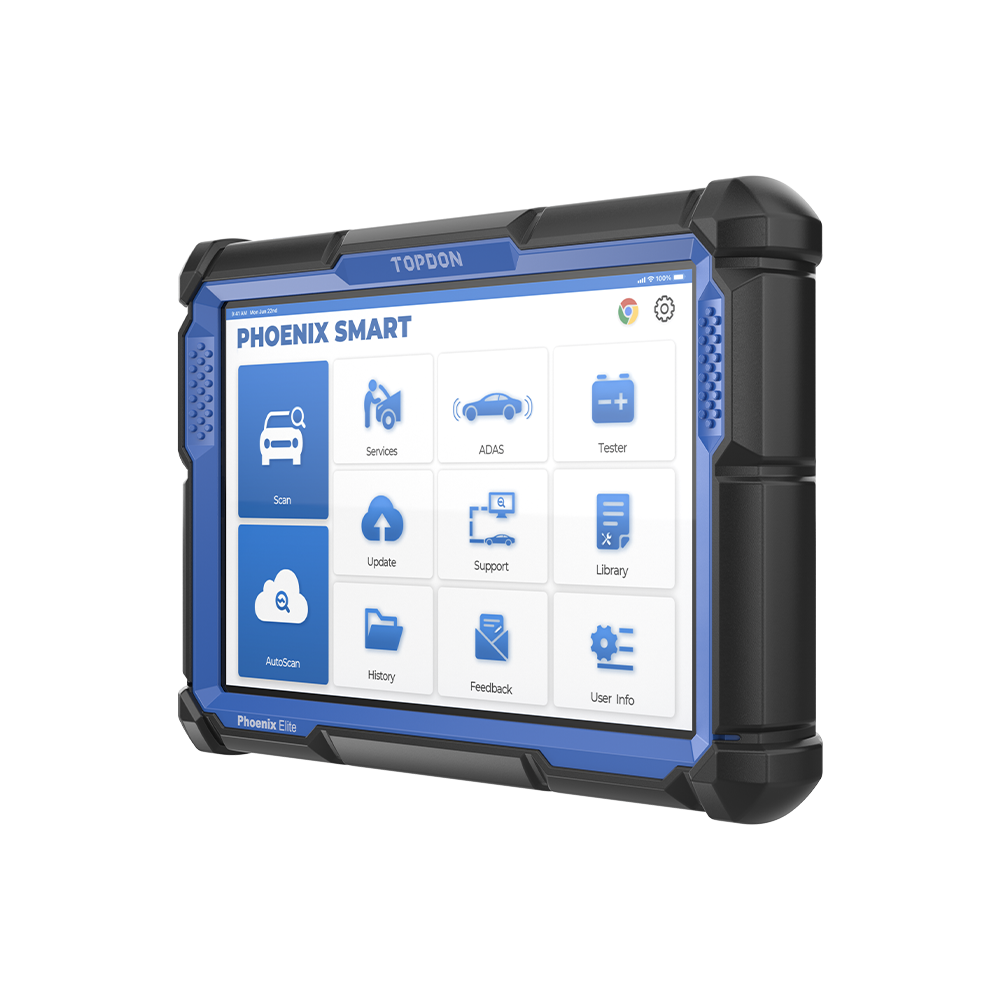

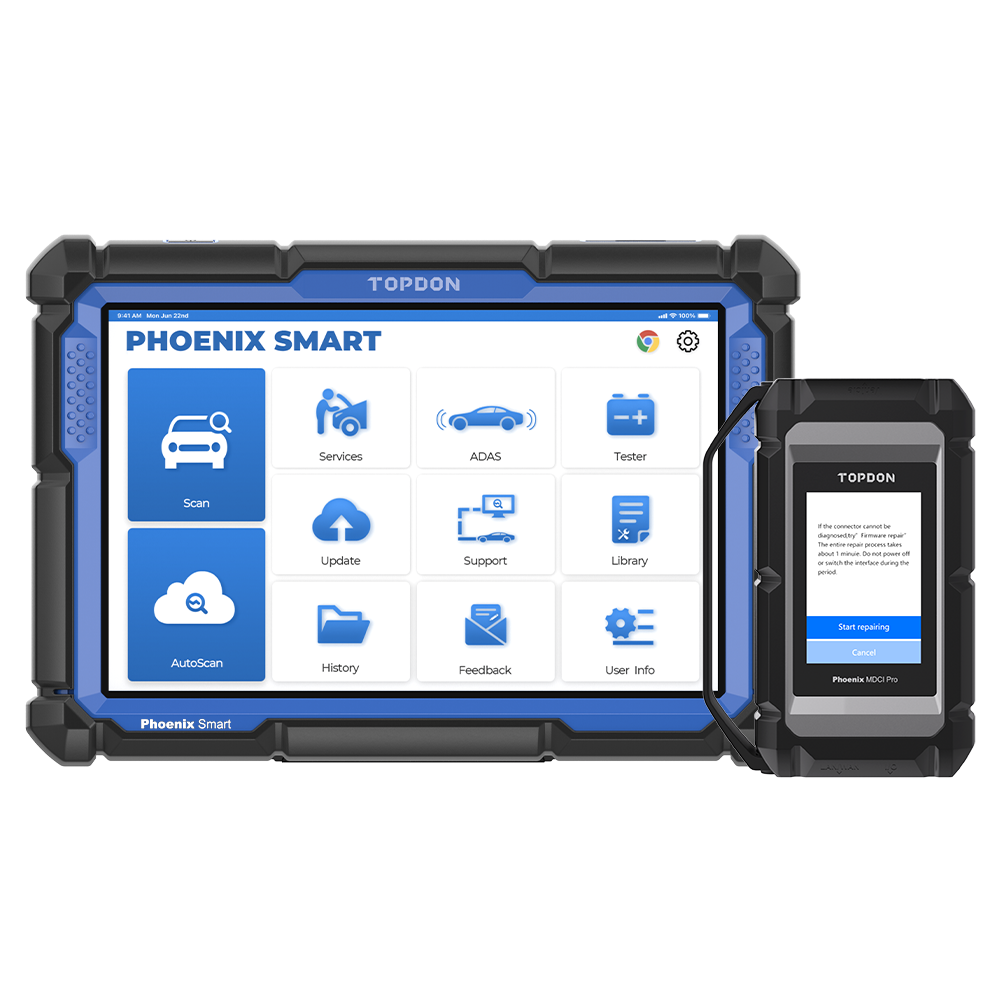

Topdon Phoenix Smart

Phoenix Smart® is part of the new generation of TOPDON smart diagnostic tools. Equipped with a quad-core processor and a 10.1-inch HD touchscreen, this device enables one-click error code diagnosis. Its 12600 mAh battery provides full-day operation without the worry of running out of power. Phoenix Smart also supports cloud-based programming functions for over 13 car brands and includes 2 years of free software updates. Together with the MDCI Pro, this scanner offers unmatched coverage, smart diagnostics, and a wide range of maintenance functions.

Features

Extensive Coverage and Comprehensive Database

Phoenix Smart supports all-system error diagnostics for more than 200 car brands and trucks (truck license sold separately). It offers OE-level diagnostics for common Asian, American, and European models, as well as many other vehicles.

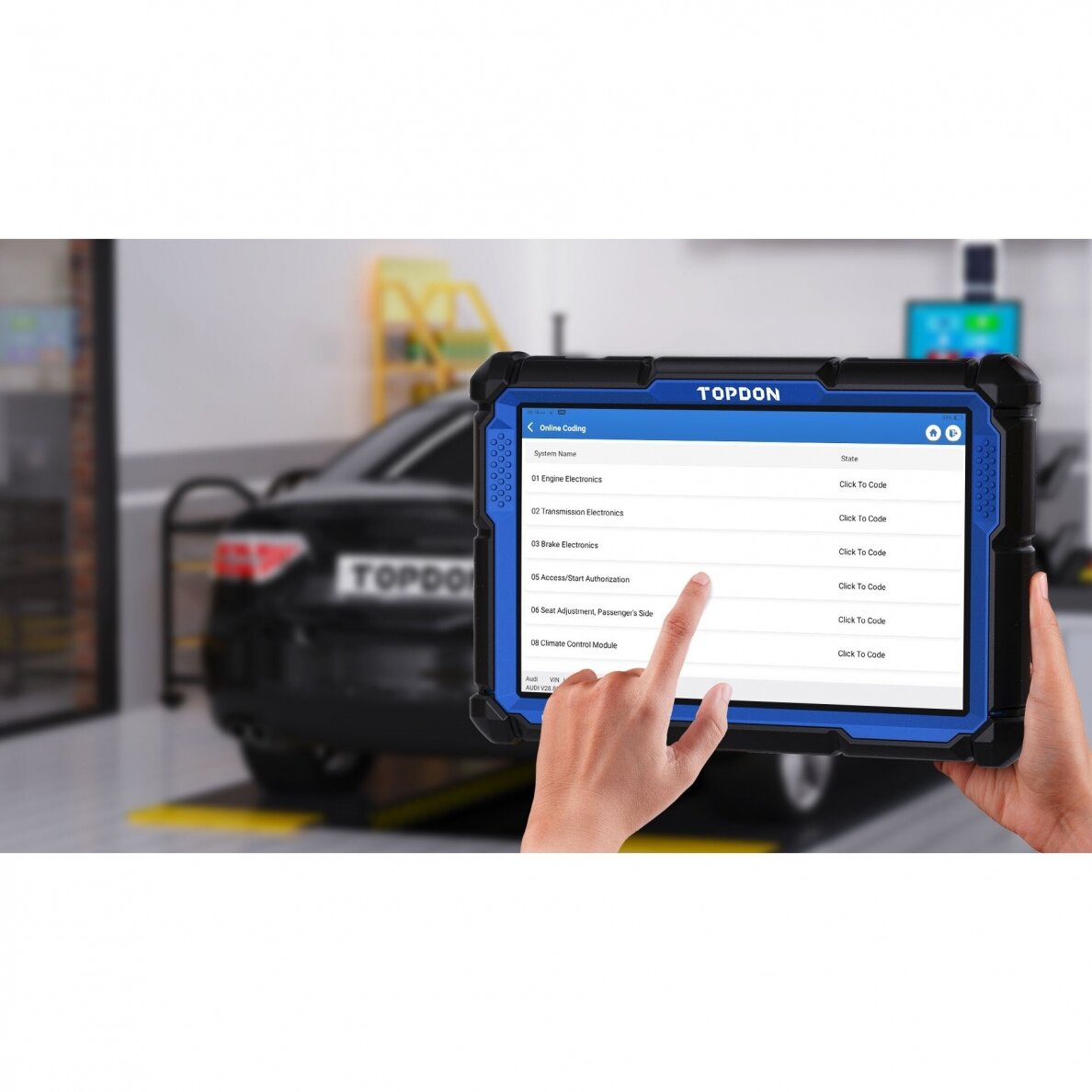

Programming Functions and Online Coding

Phoenix Smart includes online coding capabilities for brands like Audi, BMW, and Porsche.
It supports cloud-based programming for over 13 brands, such as Mercedes-Benz, BMW, VW (Audi/Skoda/Seat), Porsche, Land Rover/Jaguar, Nissan, Subaru, Renault, Hyundai, and more.

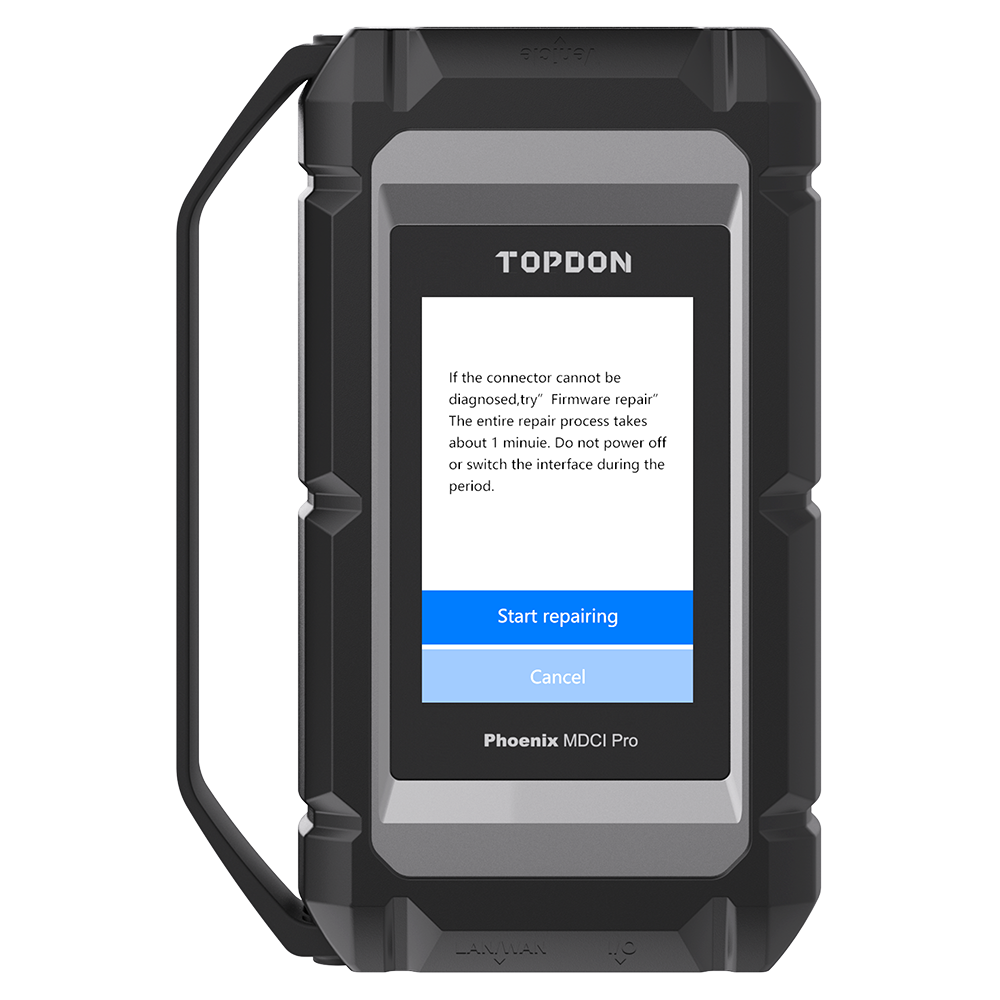

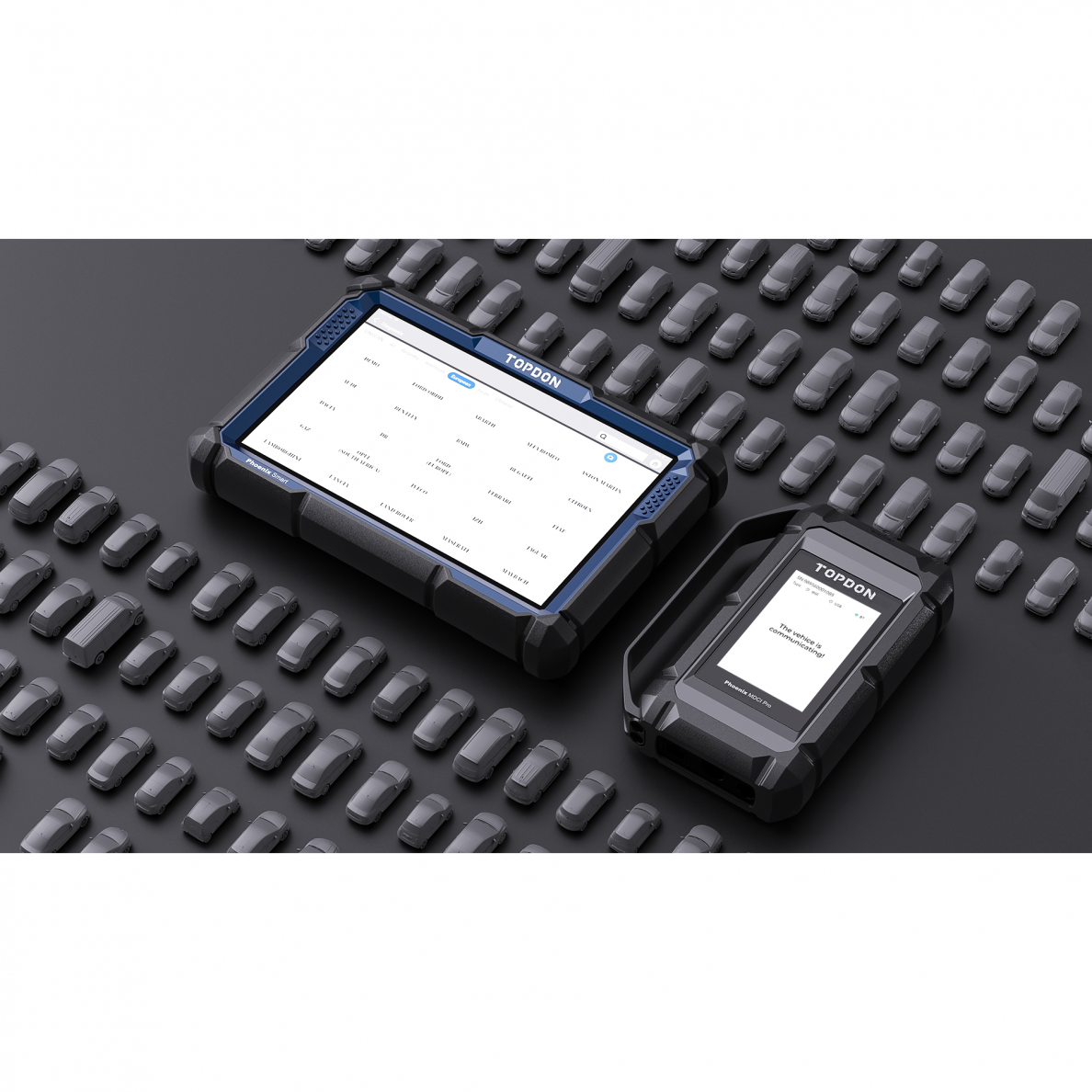

Phoenix MDCI Pro Included

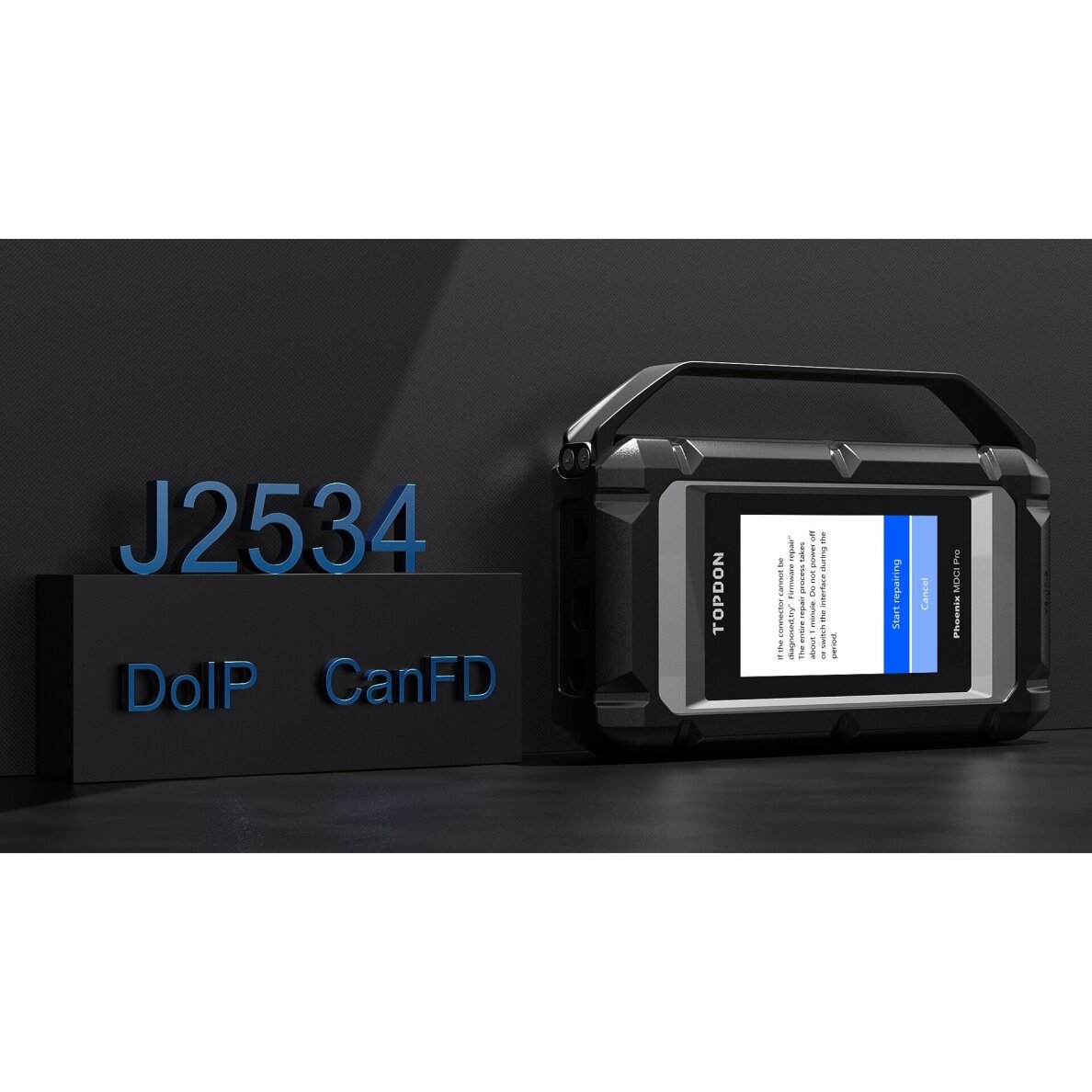

The TOPDON Phoenix Smart comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CAN FD, D-PDU, and RP1210 protocols. This unmatched coverage allows for OE-level services on modern vehicles. With Phoenix MDCI Pro, you’ll never need to outsource your work!

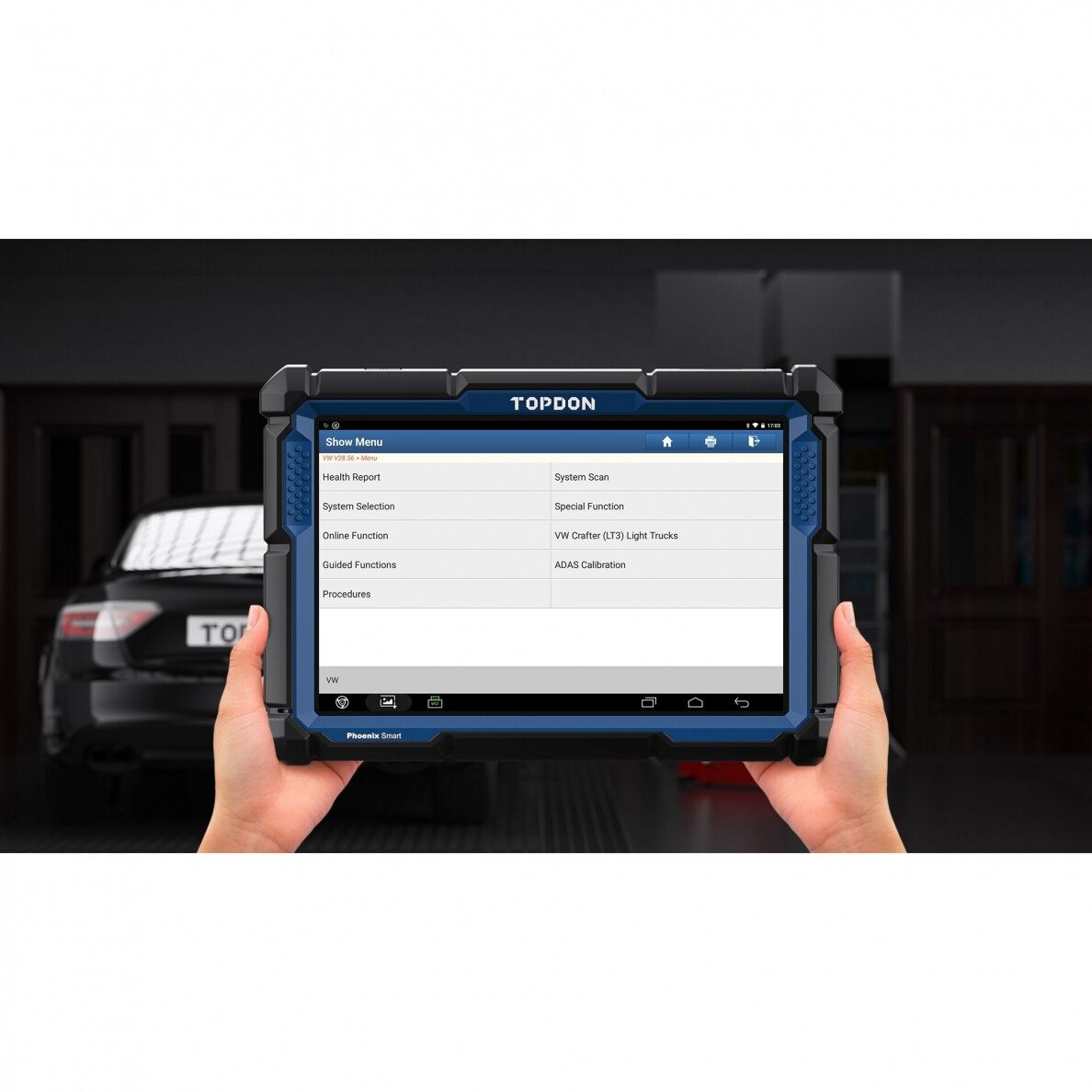

Step-by-Step Guided Procedures

Guided functions simplify the repair process. Follow on-screen instructions for a user-friendly experience, especially for VW, Audi, Skoda, and SEAT vehicles.

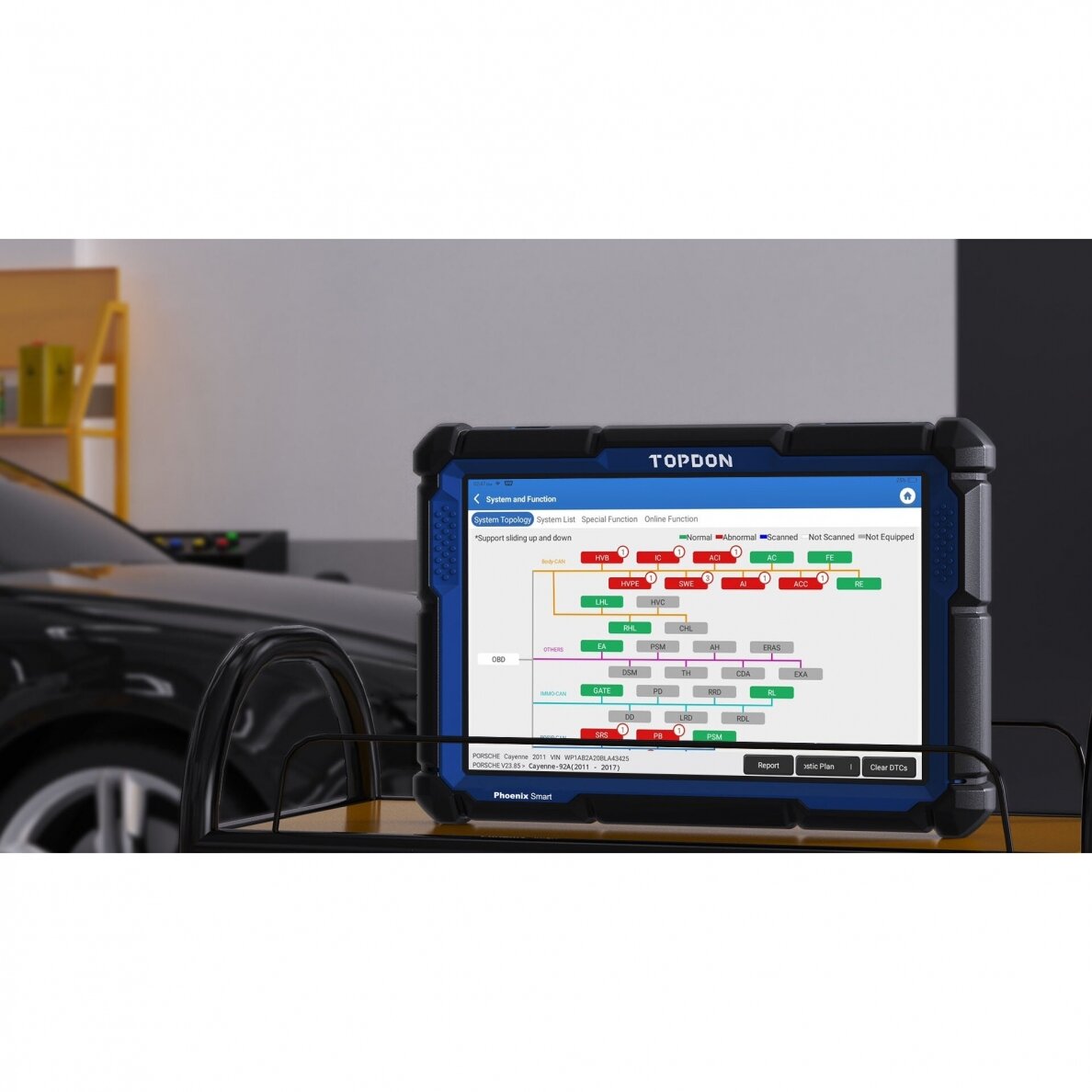

View All Error Codes on One Screen

Phoenix Smart uses a topology map to display the entire vehicle system. Raw data is converted into clear graphics, enabling technicians to view the vehicle's system status and quickly identify problems.

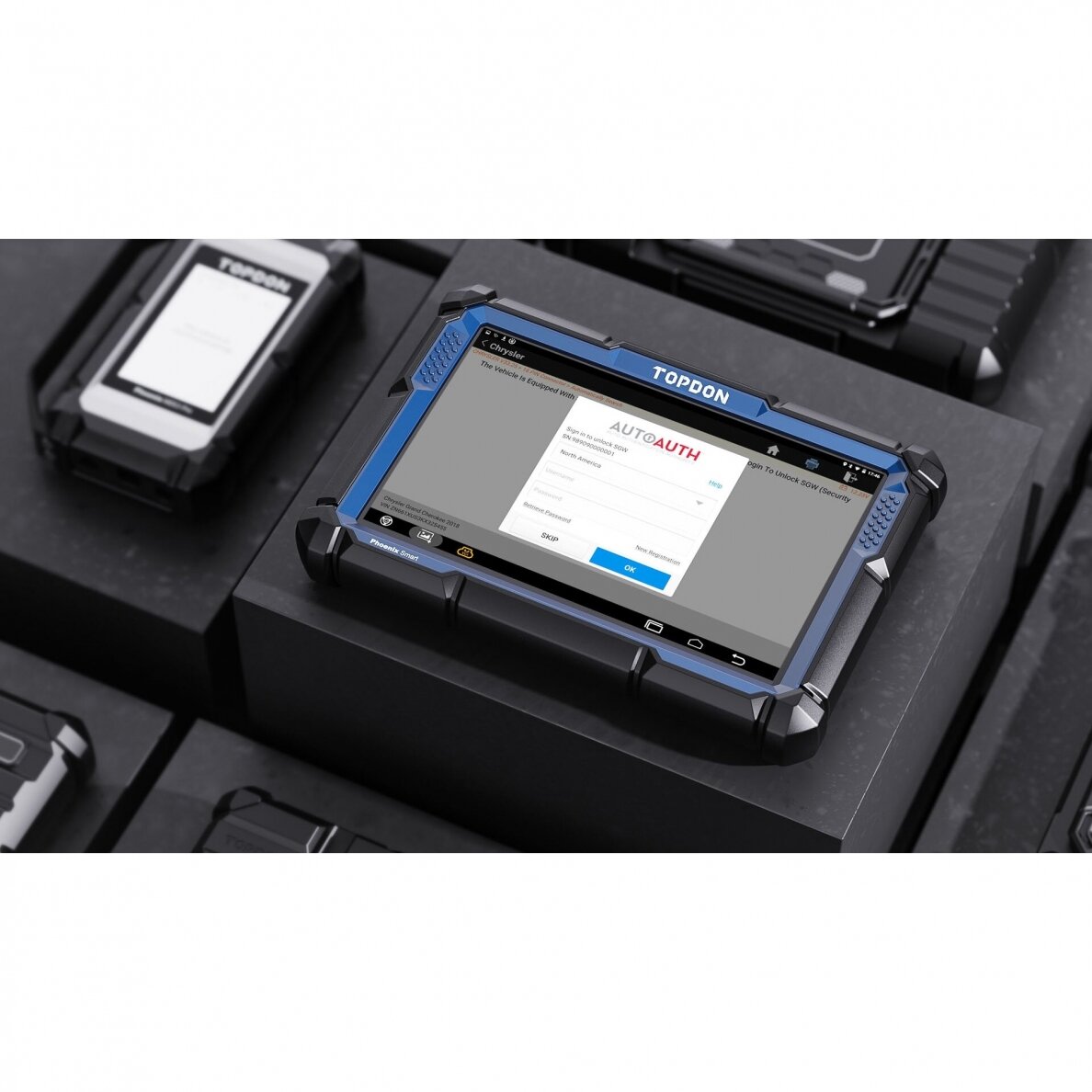

FCA Gateway Access

This advanced diagnostic tool supports access to the FCA Gateway, allowing users to work on the latest vehicles and adjust protected functions.

Unlock Special Settings

With Phoenix Smart, users can access special functions and settings, including enabling Video-In-Motion via DVD or USB, disabling seatbelt warnings, and more. Supported brands include Audi, VW, BMW, Porsche, Toyota, and others.

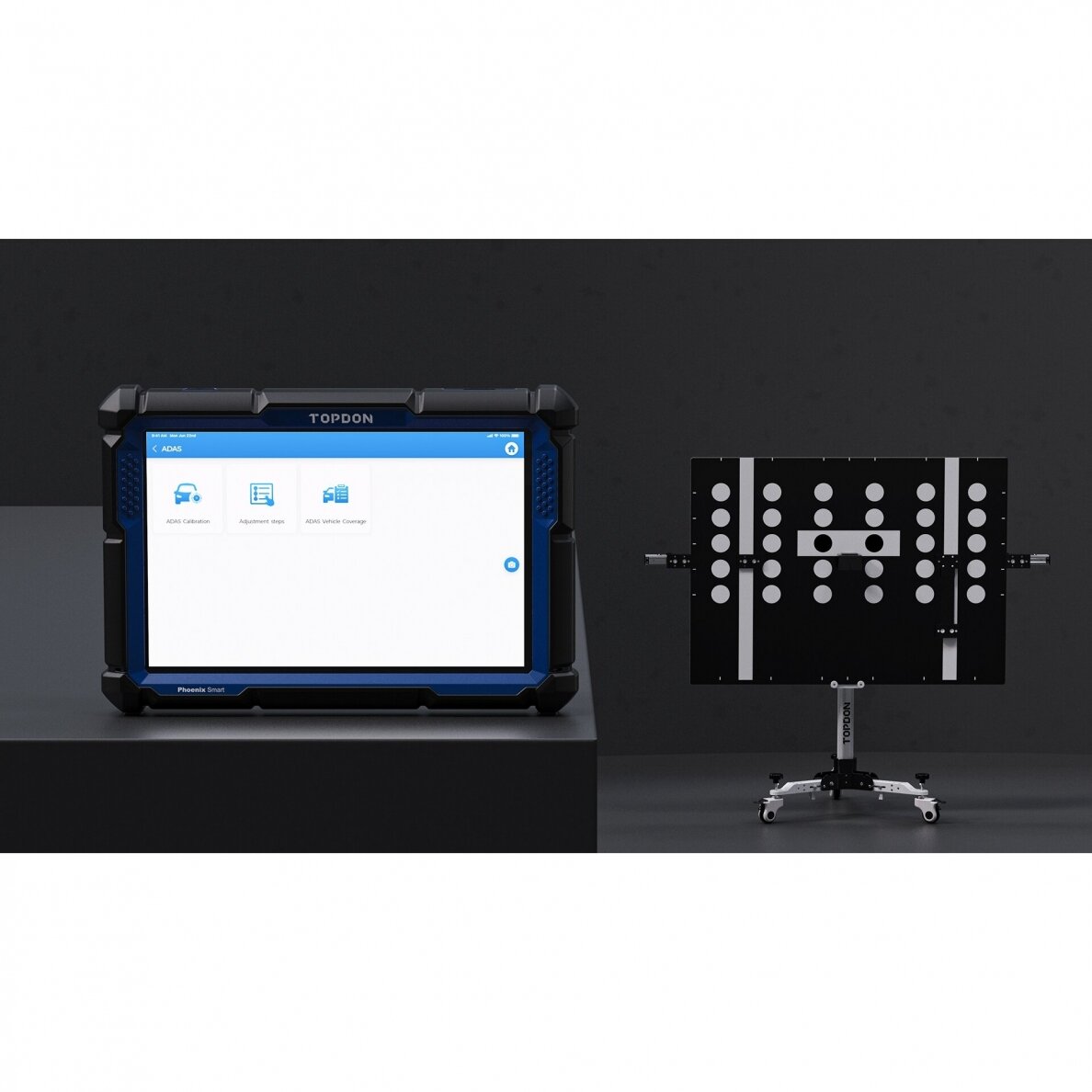

ADAS Compatibility

Offer in-demand services with Phoenix Smart by pairing it with the TOPDON Phoenix ADAS Mobile Package to calibrate advanced driver-assistance features.
As ADAS software becomes more prevalent in modern vehicles, the demand for calibration services will continue to grow. Be ready to meet this rising demand with confidence.

Specifications

Phoenix Smart:

• Display: 10.1-inch LCD touchscreen, 1280 × 800
• Processor: Quad-core, 2.0 GHz, Android 10.0
• RAM: 4 GB
• ROM: 128 GB
• Battery: 12600 mAh / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -20℃~60℃ (-4℉~140℉)
• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Dimensions: 278 × 191 × 48 mm (10.94 × 7.52 × 1.89 inches)
• Package Dimensions: 468 × 320 × 143 mm (18.43 × 12.60 × 5.63 inches)
• Languages Supported: 24 (English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian)

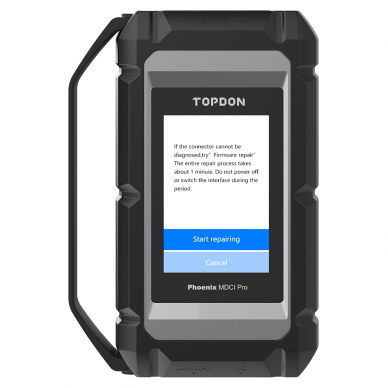

Phoenix MDCI Pro:

• Processor: Cortex-A7 + Cortex-M7, dual-core
• OS: Linux
• RAM: 256 MB
• ROM: 8 GB
• Display: 3.97-inch TFT, 320 × 480 pixels
• Wi-Fi: Dual-band (2.4GHz/5GHz)
• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Operating Voltage: DC 9~36V
• Dimensions: 196 × 135 × 42.8 mm (7.72 × 5.31 × 1.69 inches)
• Supported Protocols: J2534, CAN FD, DOIP, D-PDU, RP1210

Package Contents

• Phoenix Smart – 1 unit
• Phoenix MDCI Pro (VCI Dongle) – 1 unit
• OBDI Adapter Box Switching Line – 1 unit
• OBDII Extension Cable – 1 unit
• Cigarette Lighter Cable – 1 unit
• Type-C to USB Cable – 1 unit
• Battery Clip/Cable Set – 1 unit
• User Manual – 1 unit
• Password Envelope – 1 unit
• 10 Non-16 Pin Adapter Cable Set: (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)
• Fuses (φ5*20mm) – 4 pcs
• Fuses (φ6*30mm) – 2 pcs
• Type A to B Cable – 1 unit

Warranty: 2 years.
Free Software Updates: Cars – 2 years; Truck license sold separately.
