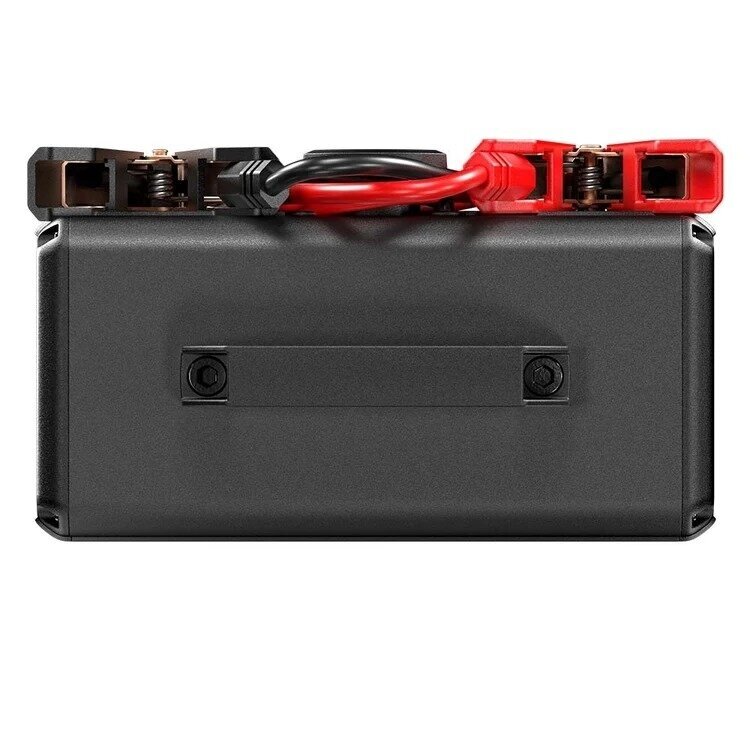

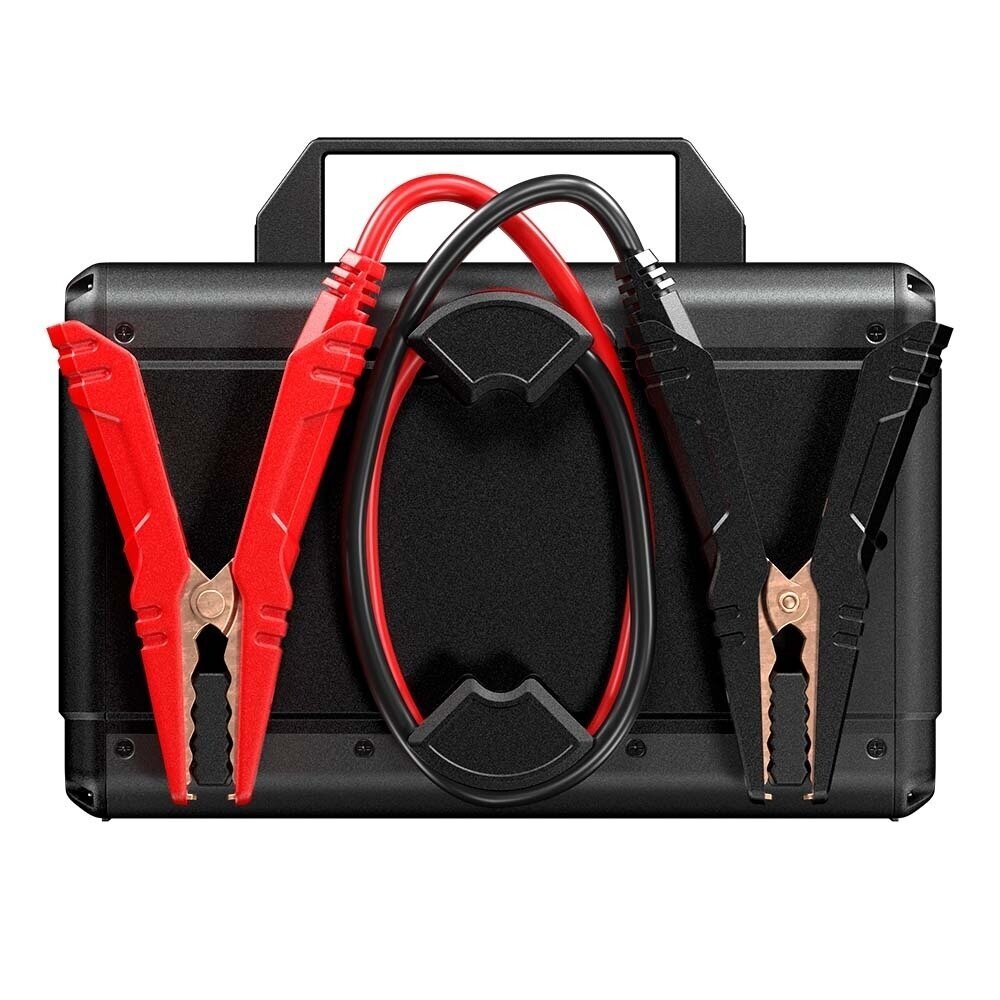

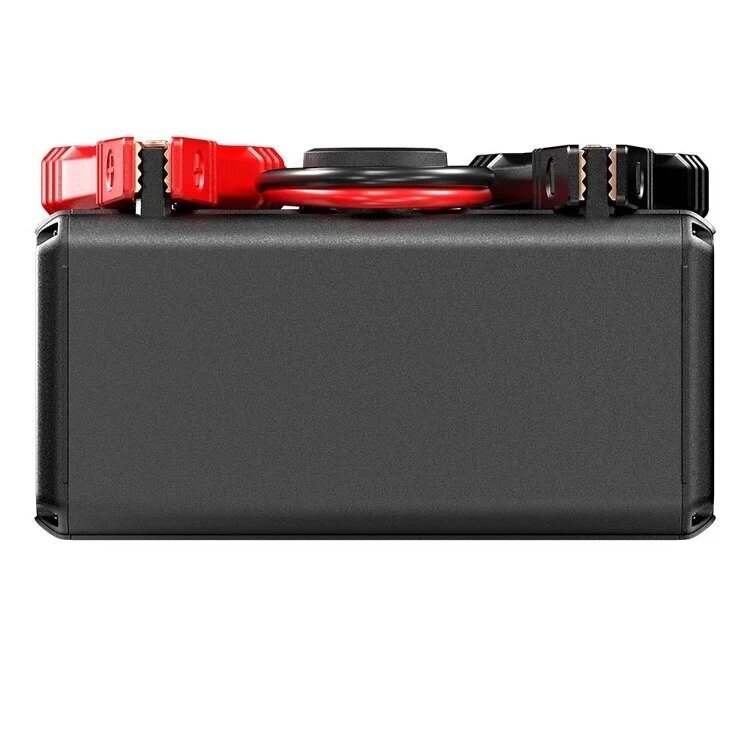

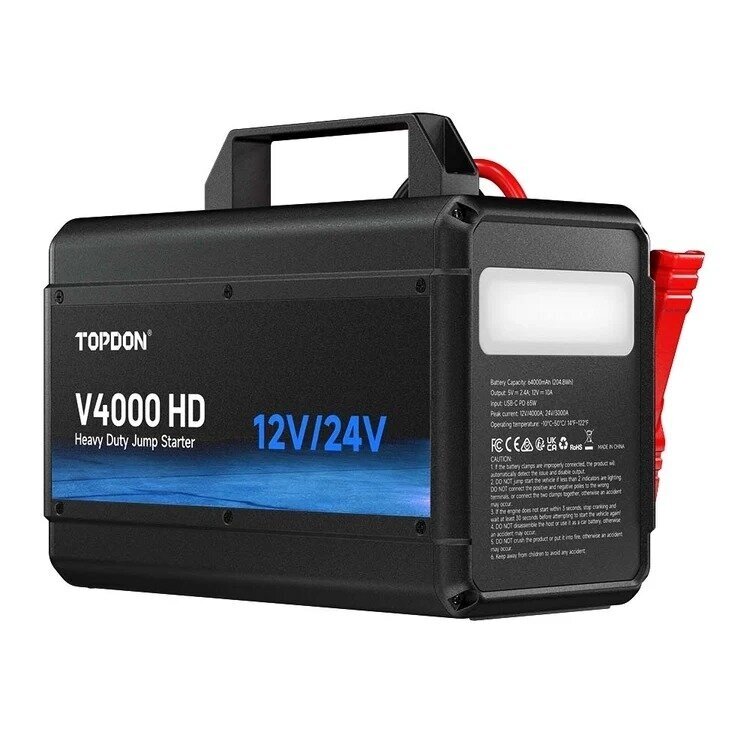

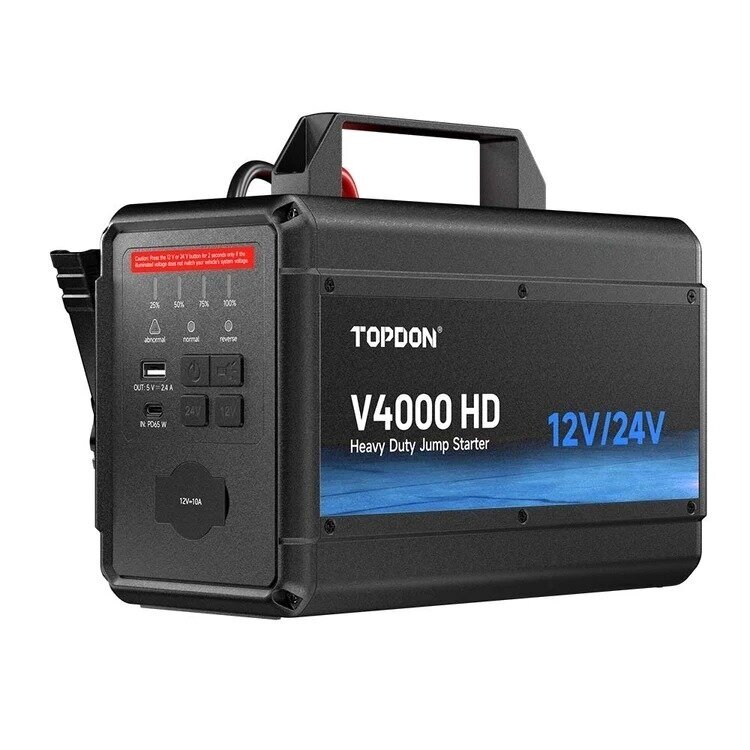

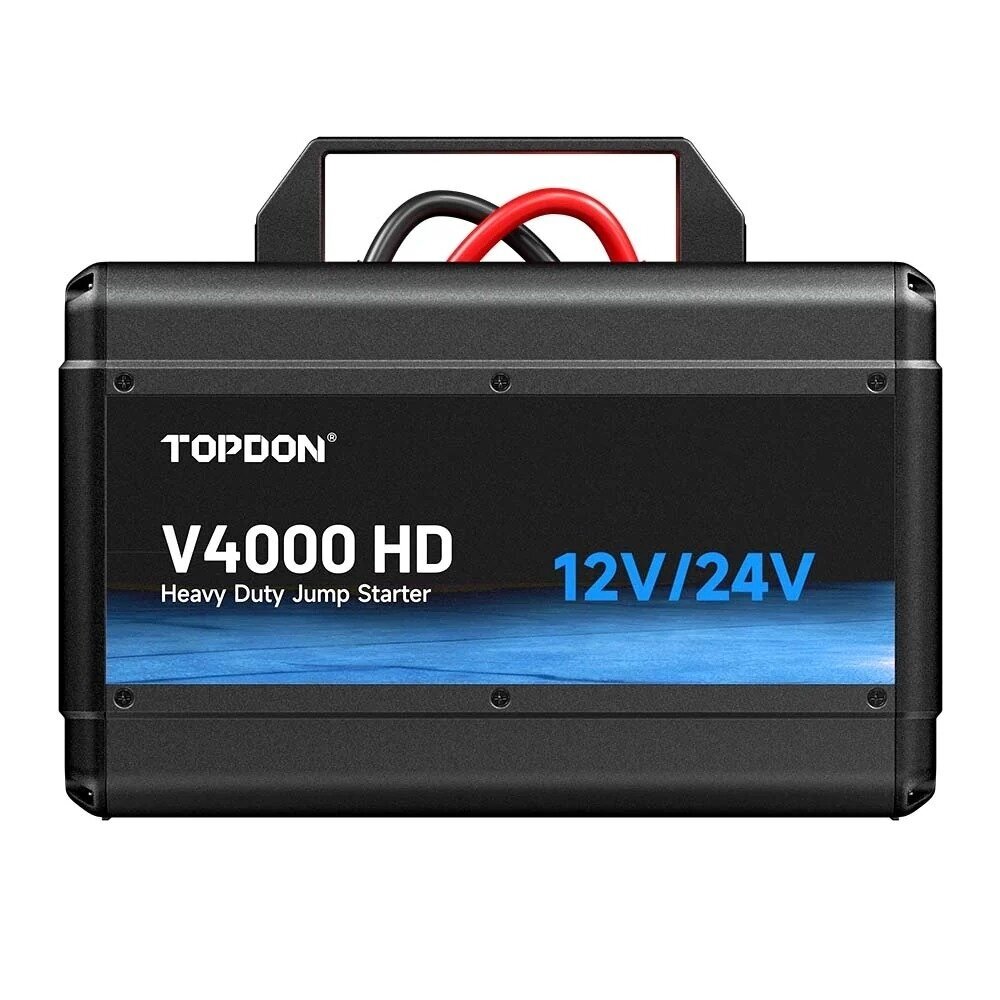

TOPDON V4000 HD – Professional 12 V / 24 V Jump Starter (4000 A)

TOPDON V4000 HD – A high-power professional jump starter for 12 V and 24 V vehicles. It is suitable for cars, vans, trucks, buses, agricultural and construction equipment and engines up to 16 litres.

Key advantages

• Automatic detection of 12 V or 24 V systems
• Up to 4000 A starting current for 12 V systems
• Up to 3000 A starting current for 24 V systems
• 64,000 mAh / 204.8 Wh LiFePO₄ battery
• More than 1,000 charge cycles
• Up to 60 starts at 12 V or 30 starts at 24 V
• 65 W USB-C PD fast charging
• 7 integrated protection levels
• Integrated LED work light

For 12 V and 24 V vehicles

V4000 HD detects the system voltage automatically and starts a wide range of vehicles, from passenger cars to trucks, buses and heavy equipment. It is suitable for engines with displacement up to 16 litres.

LiFePO₄ battery and fast charging

The 64,000 mAh / 204.8 Wh LiFePO₄ battery offers excellent safety, stability and durability. It is designed for more than 1,000 charge cycles, while the 65 W USB-C PD port charges the unit fully in approximately 3.5 hours.

Safe operation

The intelligent protection system protects against reverse polarity, short circuit, overcharge, overcurrent, excessively high or low temperature and overvoltage.

Additional functions

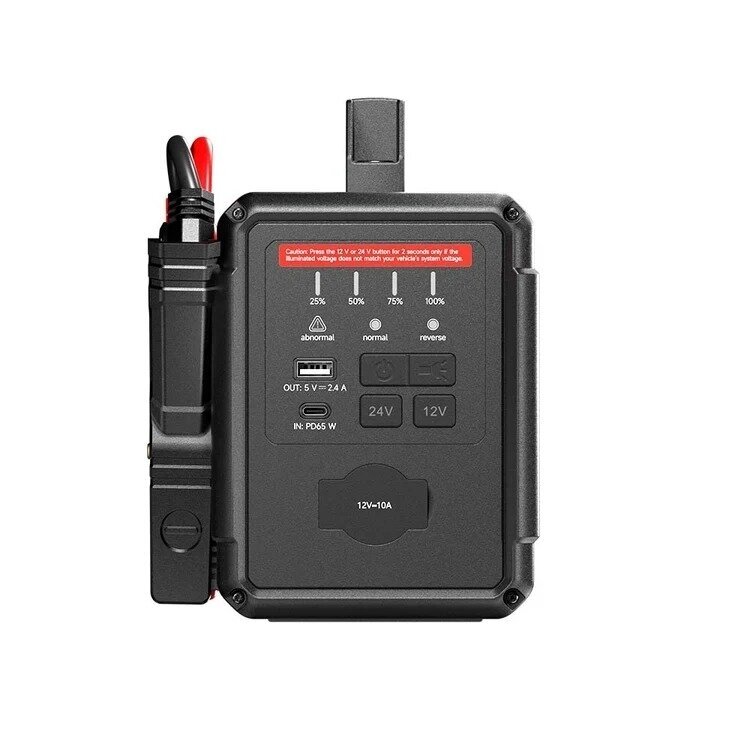

The DC 12 V / 10 A and USB-A 5 V / 2.4 A outputs can power accessories and charge mobile devices. The integrated LED light offers steady, strobe and SOS modes.

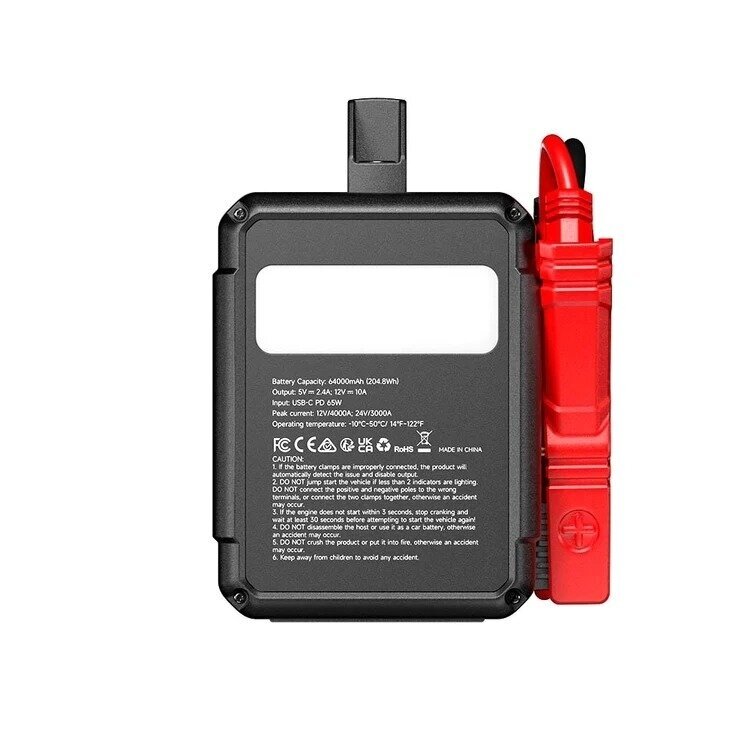

Technical specifications

• Model: TOPDON V4000 HD
• Battery type: LiFePO₄
• Capacity: 64,000 mAh / 204.8 Wh
• Starting voltage: 12 V / 24 V
• Peak current: 4000 A at 12 V, 3000 A at 24 V
• USB-C input and output: PD 65 W
• DC output: 12 V / 10 A
• USB-A output: 5 V / 2.4 A
• Operating temperature: –10 to +50 °C
• Dimensions: 247 × 146 × 194 mm
• Weight: Approx. 4 kg

Package contents

• 1 × TOPDON V4000 HD jump starter
• 1 × 65 W USB-C PD cable
• 1 × USB-A cable
• 1 × Power adapter
• 1 × User manual
